Axle Shaft: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps may contain installation instructions.

Remove the wheel and tire. Refer to: Wheels and Tires .
Remove the rear brake disc. Refer to: Brake Disc .
Remove the wheel speed sensor bolt and position aside the wheel speed sensor.
Torque: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the differential housing cover. Refer to: Differential Housing Cover .
1. Remove and discard the differential pinion shaft locking bolt.
  Torque: 22 lb.ft (30 Nm)
2. Remove the differential pinion shaft.
Courtesy of FORD MOTOR COMPANY
1. Slide the axle shaft inward.
2. Remove the axle shaft retaining washer.
Courtesy of FORD MOTOR COMPANY

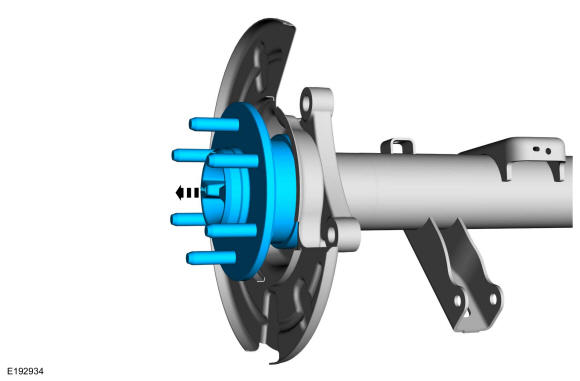

Remove the axle shaft.

Courtesy of FORD MOTOR COMPANY
