Ring Gear Backlash Adjustment

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding .

Special Tool(s) / General Equipment

GFD457925Courtesy of FORD MOTOR COMPANY
205-220 Installer, Differential Shim TKIT-1985-FH
Dial Indicator

Adjustment

All vehicles

  1. Remove the differential housing cover. Refer to: Differential Housing Cover .

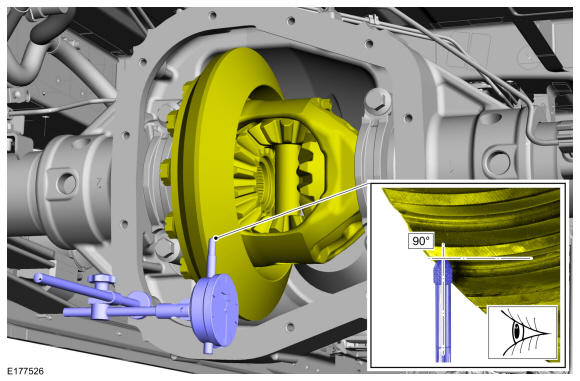

  2. Install the dial indicator gauge with holding fixture, with the dial indicator at a 90 degree angle from the ring gear tooth. Use the General Equipment: Dial Indicator
    GFD458052Courtesy of FORD MOTOR COMPANY

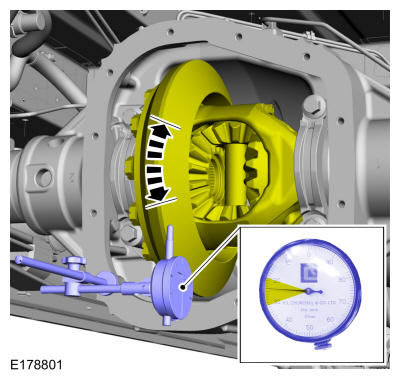

  3. Using the dial indicator check the ring gear backlash. Rotate the ring gear and carrier back and forth through the free play only. Refer to: Specifications  or Specifications - Raptor . Use the General Equipment: Dial Indicator
    GFD458053Courtesy of FORD MOTOR COMPANY
    • If a zero backlash condition occurs or the backlash is not within specification, proceed to Step 5.

    • If the backlash is within specification, proceed to Step 15. Refer to: Axle Shaft .

    • To correct for high or low backlash, increase the thickness of one differential bearing shim and decrease the thickness of the other differential bearing shim by the same amount.

    • If a zero backlash condition had occurred, add 0.50 mm (0.020 in) to the RH side shim and subtract 0.50 mm (0.020 in) from the LH side shim to allow a backlash indication. Recheck backlash.

    Vehicle equipped with ELD (Electronic Locking Differential)

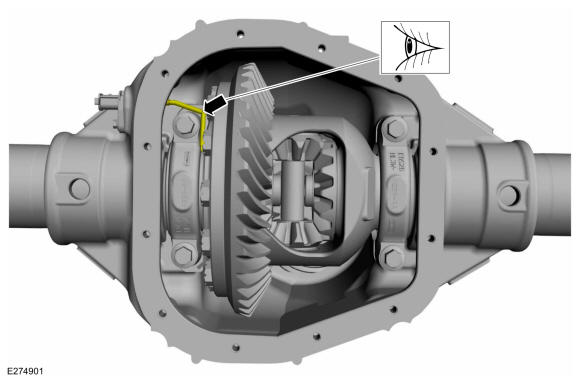

  4. NOTE: Take extra care not to damage the wiring harnesses.

    Position the E-locker wiring harness correctly.

    GFD458054Courtesy of FORD MOTOR COMPANY

    All vehicles

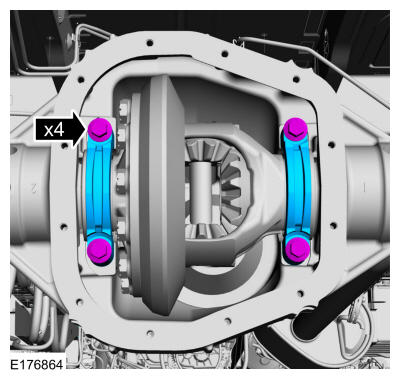

  5. NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.

    With the dial indicator removed, remove the differential bearing cap bolts and differential bearing caps.

    GFD458055Courtesy of FORD MOTOR COMPANY

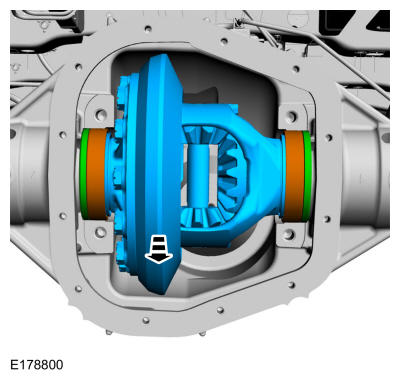

  6. Remove the differential carrier, differential carrier bearing cups and the differential shims.
    GFD458056Courtesy of FORD MOTOR COMPANY
  7. NOTE: Have the selected shims available at this time. It will be required to hold the differential carrier and the differential carrier bearing cups in until shims are installed.

    Install the differential carrier and the differential carrier bearing cups.

    GFD458057Courtesy of FORD MOTOR COMPANY

    Vehicle equipped with ELD (Electronic Locking Differential)

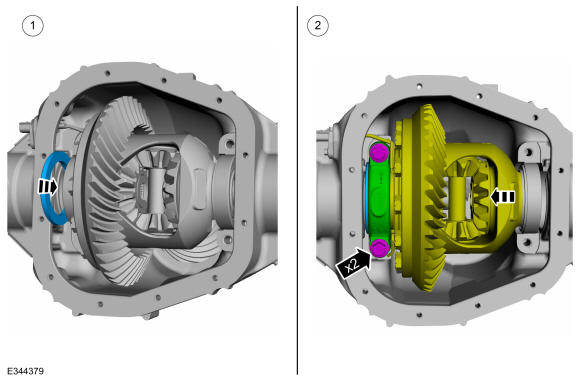

  8. NOTE: Differential bearing shims are to be installed with the chamfer facing outboard.

    1. Install the LH selected ring gear back lash shim.
    2. NOTE: Make sure that no part of the wiring harness is trapped.

      • Position the E-locker wiring harness correctly.

      • Position the differential to the LH side of the differential housing.

    3. NOTE: The differential bearing cap bolts should only be finger tight at this time.

      Install the RH differential bearing cap and the differential bearing cap bolts.

    GFD458058Courtesy of FORD MOTOR COMPANY

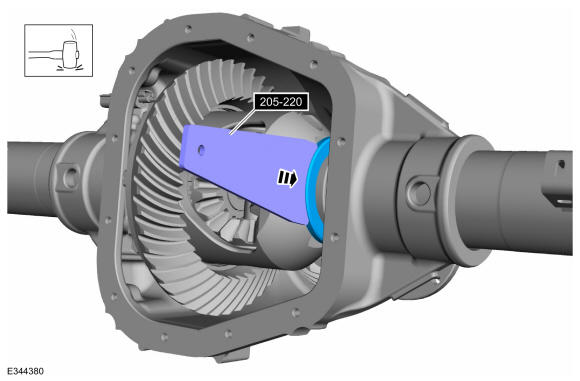

  9. Using the special tool and a soft face brass mallet, install the RH selected ring gear back lash shim. Use Special Service Tool: 205-220 Installer, Differential Shim.
    GFD458059Courtesy of FORD MOTOR COMPANY

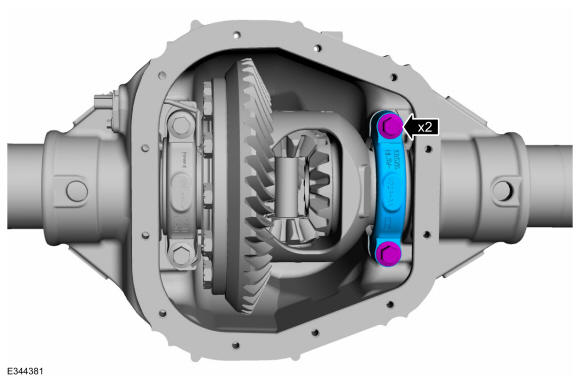

  10. NOTE: The differential bearing cap bolts should only be finger tight at this time.

    Install the RH differential bearing cap and the differential bearing cap bolts.

    GFD458060Courtesy of FORD MOTOR COMPANY

    All vehicles

  11. Tighten the differential bearing cap bolts.

    Torque: 83 lb.ft (112 Nm)

    GFD458061Courtesy of FORD MOTOR COMPANY
  12. Rotate the differential several times, to assure the differential assembly rotates freely.
    GFD458062Courtesy of FORD MOTOR COMPANY
  13. Using the dial indicator gauge with holding fixture, do a final check of the ring gear backlash. Use the General Equipment: Dial Indicator
    GFD458053Courtesy of FORD MOTOR COMPANY
  14. Apply marking compound and rotate the differential assembly 5 complete revolutions.
  15. Verify an acceptable ring gear tooth pattern check. Refer to: Rear Drive Axle and Differential .
  16. Install the axle shafts. Refer to: Axle Shaft .
  17. Install the differential housing cover. Refer to: Differential Housing Cover .
