Mode Select Switch (MSS) - Raptor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.

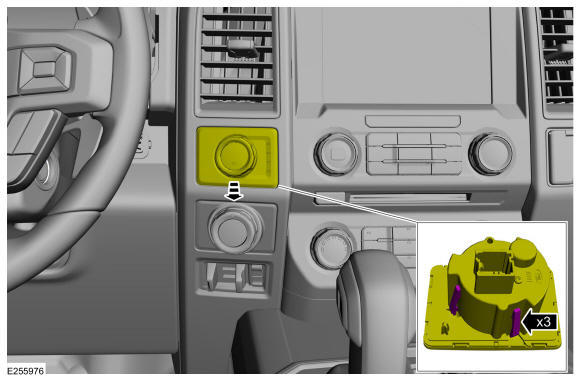

  1. Carefully pry the MSS from the instrument panel.
    GFD464814Courtesy of FORD MOTOR COMPANY

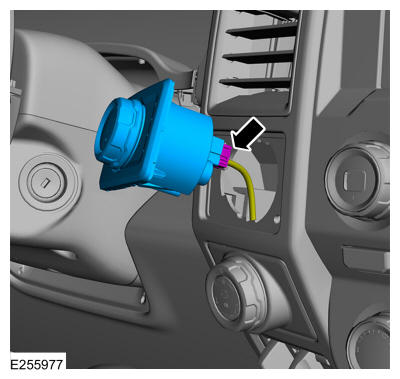

  2. Disconnect the MSS harness connector and remove the switch.
GFD464815Courtesy of FORD MOTOR COMPANY
