Integrated Wheel End (IWE): Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the brake disc. Refer to: Brake Disc .
- Remove the wheel hub nut dust cap.

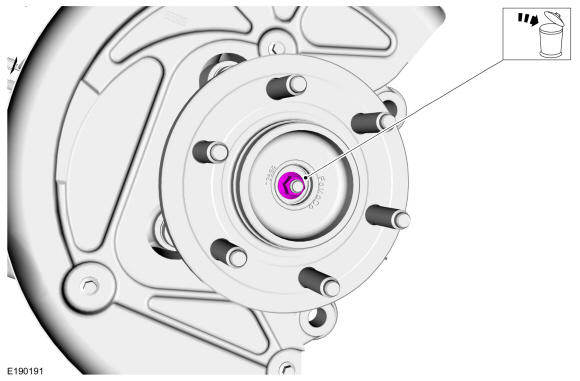

- Remove and discard the wheel hub nut.

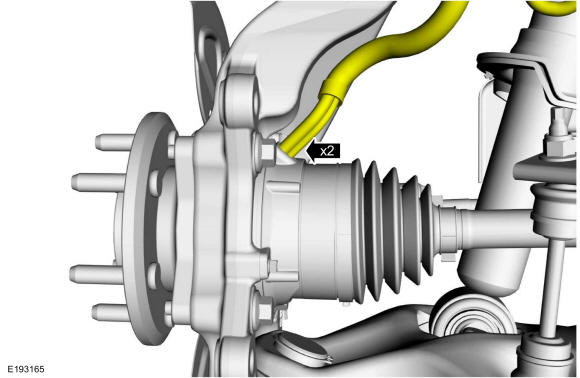

- Disconnect the vacuum tubes from the IWE and position aside.
- Remove the IWE-to-wheel knuckle retaining bolts.
-

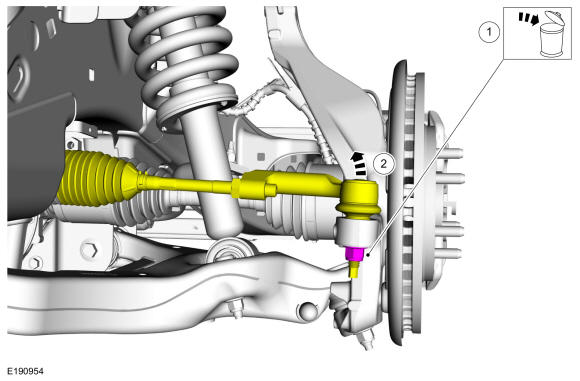

- Remove and discard the outer tie rod end nut.
-
NOTE: Do not use a hammer to separate the outer tie-rod end from the wheel knuckle or damage to the wheel knuckle may result.
Separate the outer tie rod end from the wheel knuckle. Use the General Equipment: Tie Rod End Remover
-

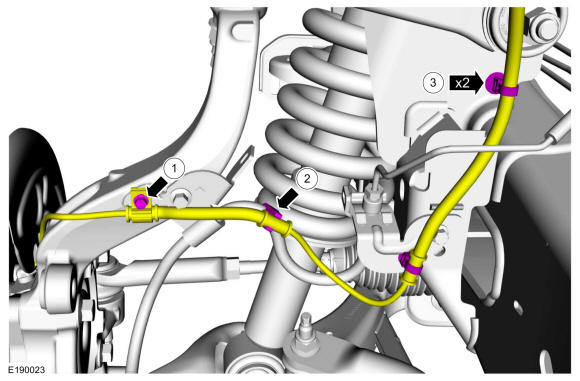

- Remove the wheel speed sensor wire bracket bolt.
- Unclip the wheel speed sensor wire from the brake hose.
- Unclip the 2 wheel speed sensor wire retainers and position aside the wheel speed sensor wire.
- Disconnect the wheel speed sensor electrical connector.
- Remove the front brake flexible hose bracket bolt and position the brake hose aside.

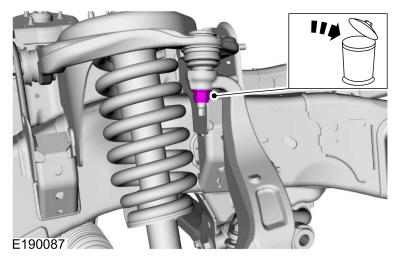

- Remove and discard the upper ball joint nut.

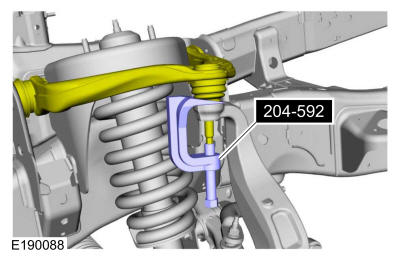

- Separate the upper ball joint from the wheel knuckle. Use Special Service Tool: 204-592 Separator, Lower Arm Ball Joint.

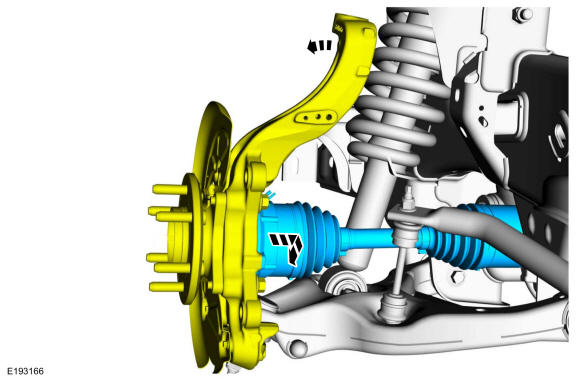

- Position the wheel knuckle to gain access and remove the CV shaft joint outboard end and IWE disconnect from the steering knuckle hub bearing.

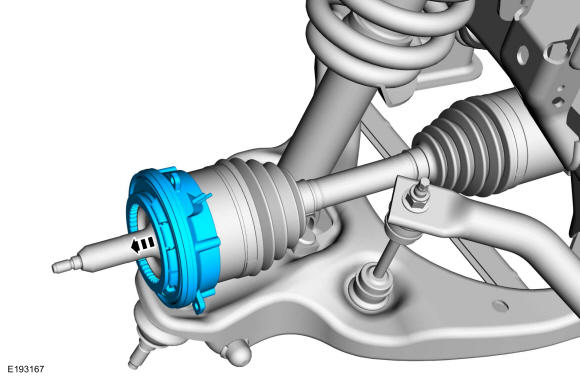

- Remove the IWE disconnect from the outboard CV joint housing.

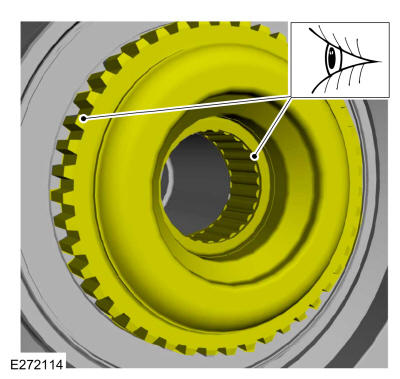

- Inspect the hub engagement teeth and the wheel bearing for wear or damage.
