Integrated Wheel End (IWE) Clutch Ring: Installation
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-

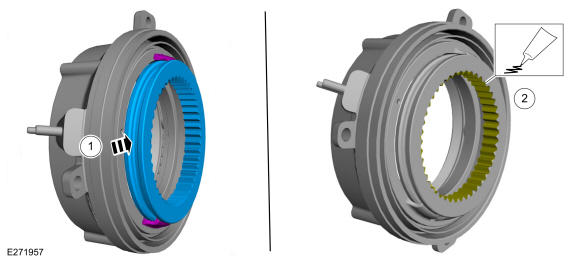

- Slide the new clutch ring in to the IWE.
- Apply grease/lubricant to the clutch ring splines.
-
NOTE: If damaged, replace the hub.

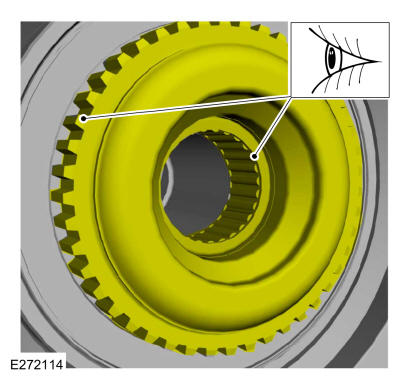

Inspect the hub engagement teeth and the wheel bearing for wear or damage.
- Install the IWE. Refer to: Integrated Wheel End (IWE) .
- Install the brake disc. Refer to: Brake Disc .
