Pinpoint Test D : Grinding / Clicking / Ratcheting Noise From Front Axle In 2H Mode Under Acceleration Or Heavy Loads

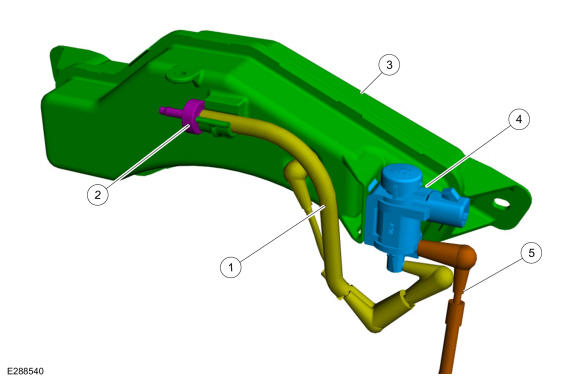

| Item | Part Number | Description |
|---|---|---|
| 1 | 3A788 | Vacuum supply line |
| 2 | Part of 3A788 | Vacuum check valve |
| 3 | 19A566 | Vacuum reservoir tank |
| 4 | 9H465 | Integrated wheel end (IWE) solenoid |
| 5 | 7A785 | Vacuum output line |
- Refer to TWO WHEEL DRIVE/FOUR WHEEL DRIVE SYSTEMS
for schematic and connector information.
Normal Operation and Fault Conditions
Locator views for the vacuum lines and vacuum reservoir are located in Description and Operation. REFER to: Four-Wheel Drive Systems - System Operation and Component Description .
In 2H mode, the TCCM provides a ground path to the IWE solenoid to supply vacuum to each IWE (disengaging the front hubs from the front axle). During certain conditions such as WOT maneuvers, manifold vacuum is lower than desired. To maintain uninterrupted IWE function in 2H, stored engine vacuum is sourced from the vacuum reservoir. A one-way check valve is implemented between the vacuum reservoir and the IWE solenoid to prevent the stored vacuum from escaping into the manifold during low engine vacuum conditions. For noise-free IWE operation under all conditions, the check valve must be operating correctly.
When following this diagnostic procedure please note the following since these system interactions may influence the results:
- When shifting to 2H mode in order for the IWE to completely disengage the vehicle steering wheel must be less than 90 degrees and 5 seconds have elapsed since the shift to 2H has been initiated.
The TCCM has two startup strategies that affect IWE operation after initial key cycle:
- When ambient temperature is below 32 F (0 deg. C), the IWE engage after initial key cycle and a driven gear is selected. The hubs stay engaged regardless of 4WD mode until 2 miles (3km) have been traveled above 6 mph (10 km/h). Once the set distance has been achieved, the IWE disengage (if the vehicle is in 2WD (2H)). Distance traveled resets only if the temperature is below calibrated threshold and another key cycle occurs or if customer shifts to Park (P) and back to a driven gear within the same key cycle. The TCCM uses this strategy to warm up the front axle in cold temperatures to improve driveline synchronization.
- When ambient temperature is above 32 F (0 deg. C), the IWE engage after the initial key cycle and a driven gear is selected. The hubs stay engaged regardless of 4WD mode until 0.5 miles (0.8km) have been traveled above 6 mph (10 km/h). Engagement only occurs once per key cycle and is not reset when shifting between Park (P) and Drive (D). The TCCM uses this strategy to delay vacuum use until vacuum-intensive engine startup has completed and sufficient vacuum is available to fully disengage the IWE.
Possible Sources
- Vacuum check valve
- Vacuum reservoir
- Vacuum supply line
- IWE solenoid
- Vacuum lines between IWE solenoid and IWE
- IWE
- IWE Cutch ring
- D1 CHECK FOR TCCM (TRANSFER CASE CONTROL MODULE) DTC (DIAGNOSTIC TROUBLE CODE)WARNING: When directed to drive the vehicle as part of this test, drive the vehicle on a hard surface in an area without traffic to prevent a crash. Failure to follow these instructions may result in personal injury.NOTE: The One-Way Vacuum Check Valve is part of the vacuum supply line (-7A788-).
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: TCCM KOEO self test.
Are any DTCs present?
Yes Refer to the DTC Chart: Transfer Case Control Module (TCCM) . No Check the one-way vacuum check valve. GO to D2 - D2 CHECK THE ONE-WAY VACUUM CHECK VALVENOTE: The One-Way Vacuum Check Valve is part of the vacuum supply line (-3A788-).
- Ignition OFF. Disconnect the vacuum line leading to the IWE solenoid from the one-way vacuum check valve.
- Connect a hand vacuum pump and apply 508 mm-Hg (20 in-Hg) of vacuum to the check valve.
Does the vacuum drop more than 12.5 mm-Hg (0.5 in-Hg) per minute?
Yes The one-way check valve is leaking. INSTALL a new vacuum supply line and one-way check valve assembly (-3A788-). TEST the system for normal operation. GO to Pinpoint Test F No The one-way check valve is holding vacuum. RECONNECT the vacuum supply line to the one-way vacuum check valve. GO to D3 - D3 CHECK THE VACUUM RESERVOIR
- Disconnect the vacuum line from the vacuum reservoir.
- Connect a hand vacuum pump and apply 508 mm-Hg (20 in-Hg) of vacuum to the vacuum reservoir.
Does the vacuum drop more than 12.5 mm-Hg (0.5 in-Hg) per minute?
Yes The vacuum reservoir is leaking. INSTALL a new vacuum reservoir (-19A566-). TEST the system for normal operation. GO to Pinpoint Test F No The vacuum reservoir is holding vacuum. RECONNECT the vacuum supply line to the vacuum reservoir. GO to D4 - D4 CHECK THE VACUUM SUPPLY LINE
- Disconnect the supply vacuum line at the IWE solenoid and allow the system to vent.
- Connect a hand vacuum pump and apply 508 mm-Hg (20 in-Hg) of vacuum to the vacuum supply line, one-way check valve, and vacuum reservoir (-19A566-).
Does the vacuum drop more than 12.5 mm-Hg (0.5 in-Hg) per minute?
Yes The vacuum supply line is leaking. INSTALL a new vacuum supply line and one-way check valve assembly (-A788-). TEST the system for normal operation. GO to Pinpoint Test F No The vacuum supply line is holding vacuum. RECONNECT the vacuum supply line to the IWE solenoid. GO to D5 - D5 CHECK THE IWE (INTEGRATED WHEEL END) SOLENOID OUTPUT VACUUM
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: TCCM datalogger.
- IDS Vehicles: Command IWE_OS # FDRS Vehicles: Command IWE_OUT_ENGAGED = No (False)
- Disconnect the IWE solenoid output vacuum line at the IWE solenoid. The vacuum supply line remains connected to the IWE solenoid.
- Connect a vacuum gauge to the IWE solenoid output port.
- Start the engine and let it idle for 2- 5 minutes until vacuum reading stabilizes.
Is the vacuum greater than 254 mm-Hg (10 in-Hg) at the IWE solenoid output port.
Yes The IWE solenoid is operating correctly. Exit Output State Control. GO to D6 No The IWE solenoid is blocked, restricted, or mechanically stuck closed. INSTALL a new IWE solenoid (-9H465-). - D6 CHECK THE IWE (INTEGRATED WHEEL END) VACUUM SYSTEM
- Ignition OFF.
- Disconnect the IWE solenoid output vacuum line at the IWE solenoid.
- Using a hand vacuum pump, apply 508 mm-Hg (20 in-Hg) of vacuum to the IWE system through the solenoid output vacuum line.
- Observe the vacuum reading.
Does the vacuum drop more than 12.5 mm-Hg (0.5 in-Hg) per minute?
Yes The IWE vacuum system is leaking. CONNECT the vacuum line to the solenoid. GO to D7 No The IWE vacuum system holds vacuum. CONNECT the vacuum line to the solenoid. GO to D9 - D7 CHECK THE RH IWE (INTEGRATED WHEEL END) LEAK RATE
- With the vehicle in N, position it on a hoist. REFER to: Jacking and Lifting - Overview .
- Disconnect the vacuum lines from the RHIWE.
- Apply 508 mm-Hg (20 in-Hg) of vacuum to the larger port on the RHIWE and observe vacuum reading.
Does the vacuum drop more than 12.5 mm-Hg (0.5 in-Hg) per minute?
Yes The RHIWE is leaking. INSTALL a new RHIWE. REFER to: Integrated Wheel End (IWE) . No The RHIWE is not leaking. GO to D8 - D8 CHECK THE LH IWE (INTEGRATED WHEEL END) LEAK RATE
- With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
- Disconnect the vacuum lines from the LHIWE.
- Apply 508 mm-Hg (20 in-Hg) of vacuum to the larger port on the LHIWE and observe vacuum reading.
Does the vacuum drop more than 12.5 mm-Hg (0.5 in-Hg) per minute?
Yes The LHIWE is leaking. INSTALL a new LHIWE. REFER to: Integrated Wheel End (IWE) . No Based on the results of steps 6, 7, and 8 the IWE system vacuum lines are leaking. INSTALL new vacuum lines (-7A785-, -3C125-) as necessary. - D9 CHECK THE RH IWE (INTEGRATED WHEEL END) VACUUM LINE FOR AN OBSTRUCTION
- With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview .
- Disconnect the vacuum lines from the RHIWE.
- Connect a hand-held vacuum gauge to the larger vacuum supply line at the RHIWE.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: TCCM datalogger.
- IDS Vehicles: Command IWE_OS # to No FDRS Vehicles: Command IWE_OUT_ENGAGED = No (False)
- Start the engine and let it idle for 2- 5 minutes until vacuum reading stabilizes.
Is the vacuum greater than 254mm (10 in-Hg) at the RHIWE
Yes The vacuum line to the RHIWE is not blocked or restricted. Remove the vacuum gauge and CONNECT the vacuum lines to the RHIWE. GO to D10 No The IWE system vacuum line is blocked between the IWE solenoid and the IWE. INSTALL new vacuum lines (-7A785-, -3C125-) as necessary. - D10 CHECK THE LH IWE (INTEGRATED WHEEL END) VACUUM LINE FOR AN OBSTRUCTION
- Disconnect the vacuum lines from the LHIWE.
- Connect a hand-held vacuum gauge to the larger vacuum supply line at the LHIWE.
- Ignition ON.
- Enter the following diagnostic mode on the scan tool: TCCM datalogger.
- IDS Vehicles: Command IWE_OS # to No, FDRS Vehicles: Command IWE_OUT_ENGAGED = No (False).
- Start the engine and let it idle for 2- 5 minutes until vacuum reading stabilizes.
Is the vacuum greater than 254 mm-Hg (10 in-Hg) at the LHIWE
Yes The IWE system vacuum lines are operating correctly at this time. GO to D11 No The IWE system vacuum line is blocked between the IWE solenoid and the LHIWE. INSTALL new vacuum lines (-7A785-, -3C125-) as necessary. - D11 CHECK THE RH (RIGHT-HAND) IWE (INTEGRATED WHEEL END) OPERATION
- Ignition OFF.
- Connect a hand vacuum pump with gauge to the larger port of the RHIWE.
- Observe the RH halfshaft while rotating the RH front tire. Apply between 152 and 203 mm-Hg (6 and 8 in-Hg) of vacuum and release the vacuum to manually disengage and engage the RHIWE.
Did the RHIWE disengage between 152 and 203 mm-Hg (6 and 8 in-Hg) and engage when the vacuum is released?
Yes The RHIWE is operating correctly at this time. GO to D12 No REMOVE the RHIWE. INSPECT IWE clutch ring, hub engagement teeth, and the wheel bearing for wear or damage. INSTALL new components as necessary. REFER to: Integrated Wheel End (IWE) . - D12 CHECK THE LH (LEFT-HAND) IWE (INTEGRATED WHEEL END) OPERATION
- Connect a hand vacuum pump with gauge to the larger port of the LHIWE.
- Observe the LH halfshaft while rotating the LH front tire. Apply between and 203 mm-Hg (6 and 8 in-Hg) of vacuum and release the vacuum to manually disengage and engage the LHIWE.
Did the LHIWE disengage between 152 and 203 mm-Hg (6 and 8 in-Hg) and engage when the vacuum is released?
Yes The IWE system is operating correctly at this time. RECONNECT all IWE system vacuum connections. Test the system for normal operation. GO to Pinpoint Test F No REMOVE the LHIWE. INSPECT IWE clutch ring, hub engagement teeth, and the wheel bearing for wear or damage. INSTALL new components as necessary. REFER to: Integrated Wheel End (IWE) .
