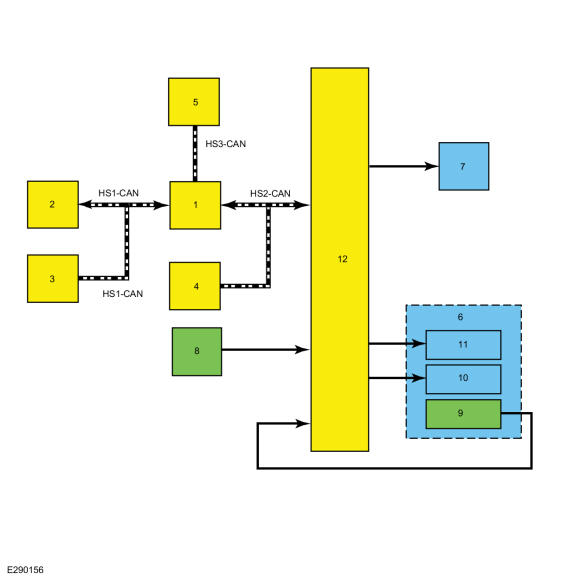

System Diagram
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
All Engines
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
GWM |
| 2 |
PCM |
| 3 |
TCM |
| 4 |
ABS module |
| 5 |
ICP |
| 6 |
Transfer Case |
| 7 |
IWEs |
| 8 |
MSS |
| 9 |
Position Sensors |
| 10 |
Shift Motor |
| 11 |
Clutch Solenoid |
| 12 |
TCCM |
