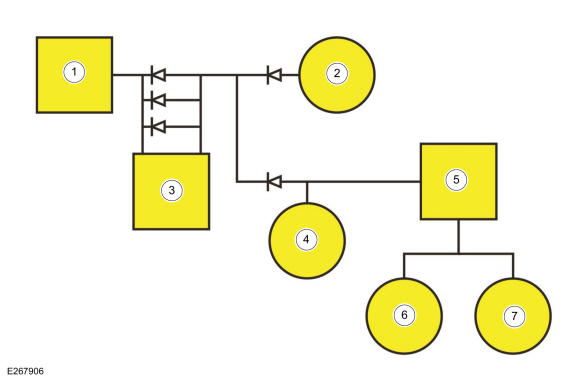

IWE System Vacuum Diagram 5.0L
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of FORD MOTOR COMPANY
|
| Item |
Description |
| 1 |
Air cleaner outlet pipe |
| 2 |
Brake booster |
| 3 |
Intake manifold |
| 4 |
IWE vacuum reservoir |
| 5 |
IWE solenoid |
| 6 |
IWE vacuum actuator LH |
| 7 |
IWE vacuum actuator RH |
