Differential Carrier: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Remove the differential housing cover. Refer to: Differential Housing Cover .
  2. Remove the axle shafts. Refer to: Axle Shaft .
  3. NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.

    1. Mark the differential bearing caps.
    2. Remove the differential bearing cap bolts.
    3. Remove the differential bearing caps.

    GFD457928Courtesy of FORD MOTOR COMPANY

    Vehicle equipped with ELD (Electronic Locking Differential)

  4. Remove the ELD bolt and pull the ELD connector adaptor out of the axle assembly housing.
    GFD457952Courtesy of FORD MOTOR COMPANY

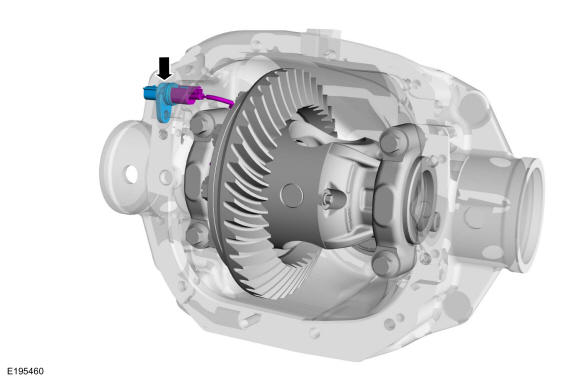

  5. Disconnect the ELD coil electrical connector from the ELD connector adapter.
    GFD457953Courtesy of FORD MOTOR COMPANY

    All vehicles

  6. Remove the differential carrier, differential carrier bearing cups and the differential shims.
GFD457929Courtesy of FORD MOTOR COMPANY
