Axle Shaft: Installation

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

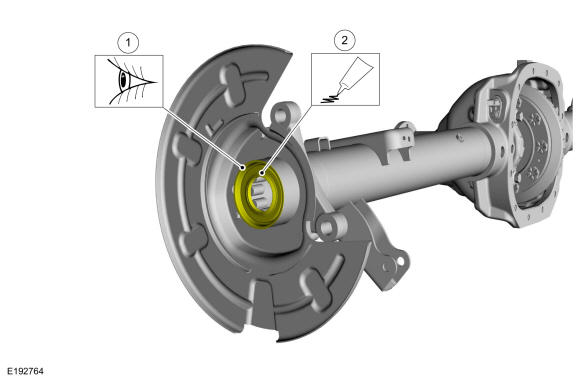

    • Inspect the axle shaft seal.

    • Lubricate the axle seal lip.

      Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

    GFD457951Courtesy of FORD MOTOR COMPANY
  2. To install, reverse the removal procedure.
