Differential Carrier - Vehicles With: Electronic Locking Differential (ELD): Disassembly
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the differential carrier. Refer to: Differential Carrier .
- Using the general equipment, remove and discard the differential bearings. Use Special Service Tool: 205-D072 (D97L-4221-A) 2 Jaw Puller, 205-D061 (D83T-4205-C2) Step Plate.

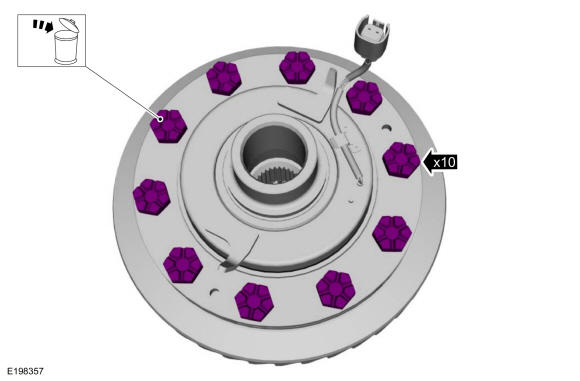

- Remove and discard the ring gear bolts.

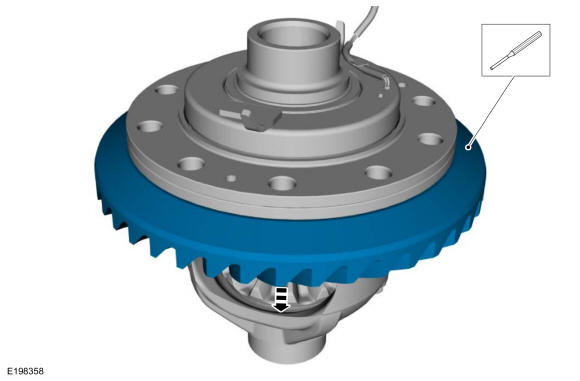

- Using the brass punch and a soft face hammer, remove the ring gear. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

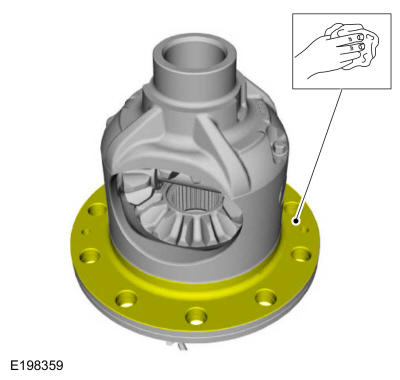

- Clean the differential case flange of foreign material.

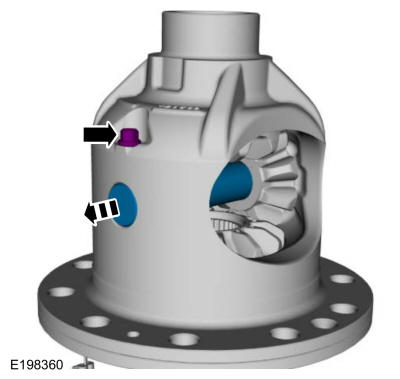

- Remove the differential pinion shaft lock bolt and the differential pinion shaft.

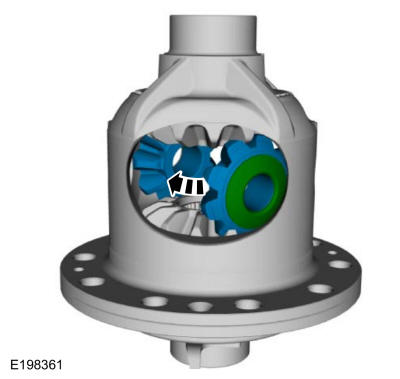

- Rotate and remove the differential pinion gears and differential pinion gear thrust washers.

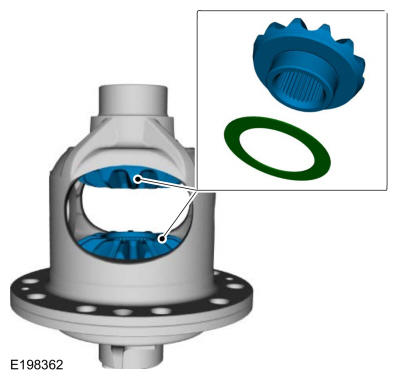

- Remove the differential side gears and the differential side gear thrust washers.
