Front Driveshaft: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps may contain installation instructions.

With the vehicle in NEUTRAL, position the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .

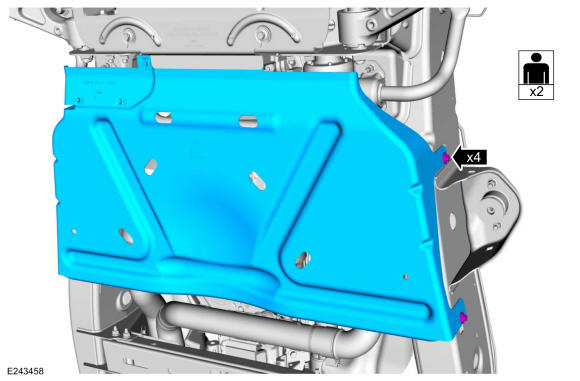

If equipped. Remove the bolts and the transmission shield.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

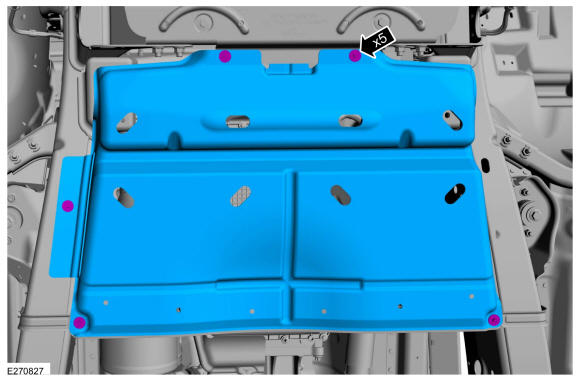

If equipped. Remove the bolts and the rear underbody skid plate.
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

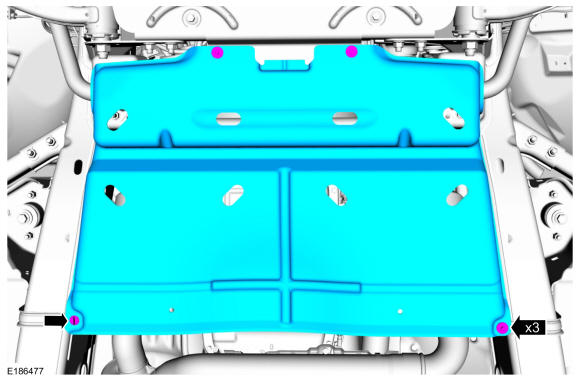

If equipped. Remove the bolts and the transmission shield.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

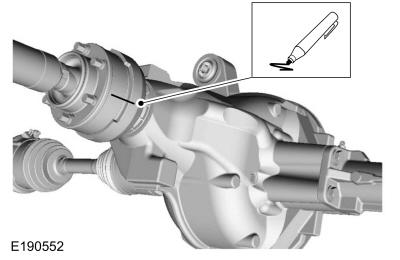

Index-mark the front driveshaft flange CV joint to the pinion flange cup.

Courtesy of FORD MOTOR COMPANY

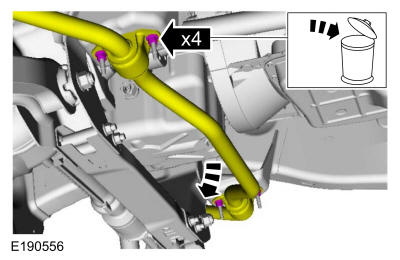

Remove and discard the stabilizer bar bracket nuts and allow the stabilizer bar to swing downward.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

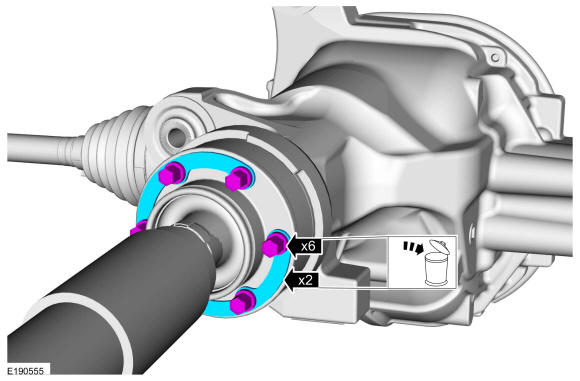

Remove and discard the front driveshaft CV joint-to-pinion flange cup bolts and retaining straps.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

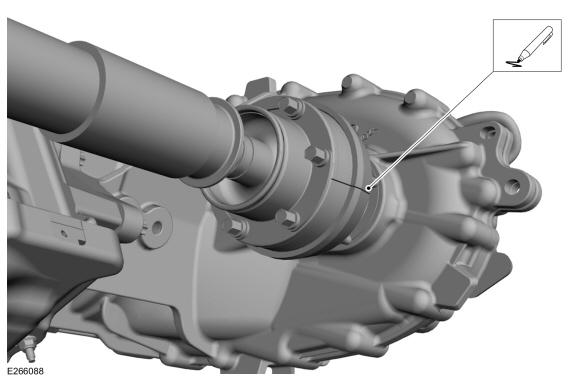

Index-mark the front driveshaft flange CV joint-to-transfer case flange cup.

Courtesy of FORD MOTOR COMPANY

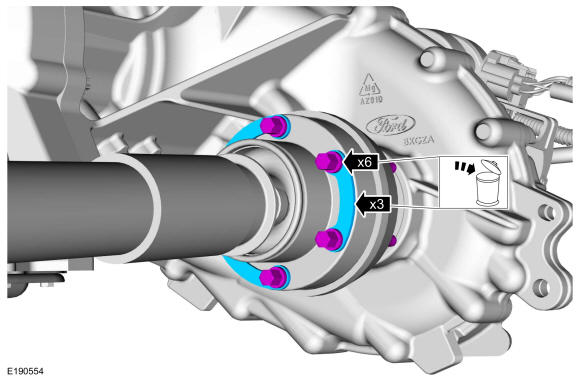

Remove and discard the front driveshaft CV joint-to-transfer case flange cup bolts and retaining straps.
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY

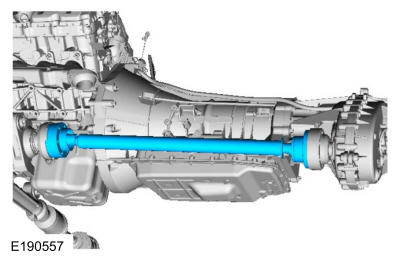

Remove the front driveshaft.

Courtesy of FORD MOTOR COMPANY
