Side Curtain Airbag - Regular Cab: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

Lower the headliner. Refer to: Headliner - Lowering - Regular Cab .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

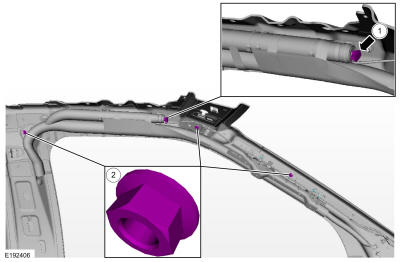

1. Disconnect the side curtain airbag electrical connector.
2. Remove the side curtain airbag nuts.
  Torque: 93 lb.in (10.5 Nm)
Courtesy of FORD MOTOR COMPANY

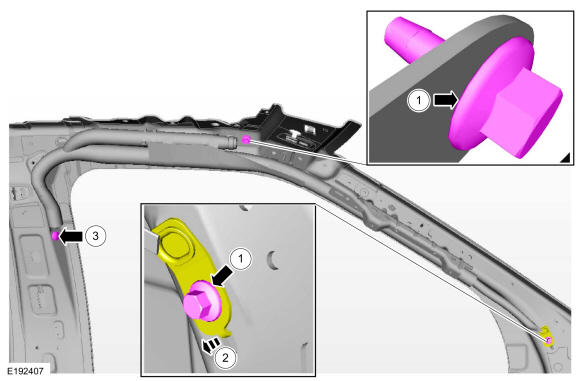

1. Remove the side curtain airbag bolts.
  Torque: 93 lb.in (10.5 Nm)
2. Separate the front tether clip.
3. Remove the pin-type retainer.
Courtesy of FORD MOTOR COMPANY

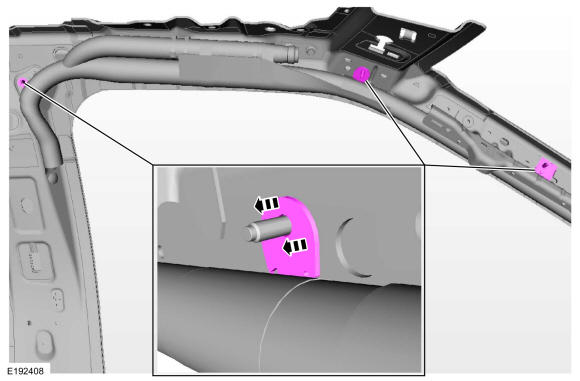

Detach the side curtain airbag hangers.

Courtesy of FORD MOTOR COMPANY

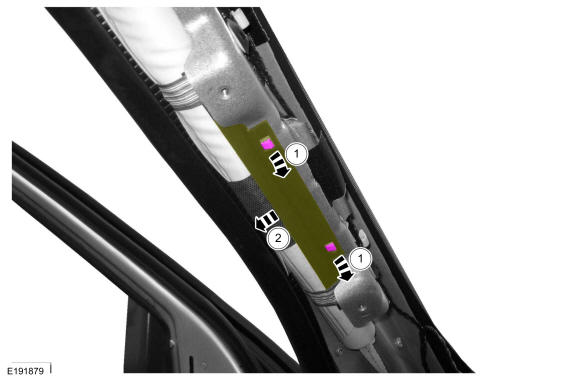

1. Detach the side curtain airbag retainers from the A-pillar bracket.
2. Pull the side curtain airbag away from the A-pillar bracket.
Courtesy of FORD MOTOR COMPANY

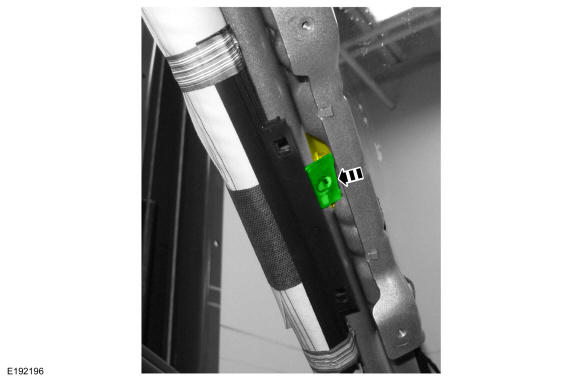

Feed the side curtain airbag hanger out from between the A-pillar and the A-pillar bracket.

Courtesy of FORD MOTOR COMPANY

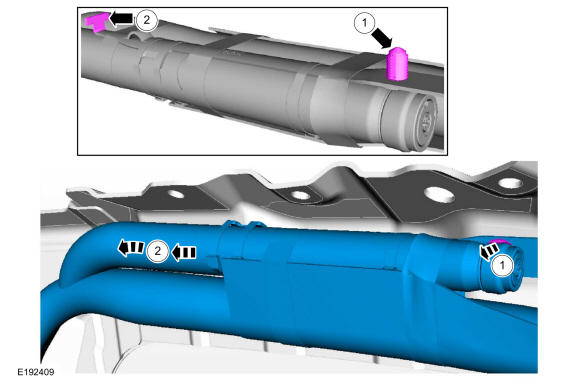

1. Detach the pin-type retainer.
2. Slide the side curtain airbag rearward and out, disengaging the T-tab from the sheet metal and remove the side curtain airbag.

Courtesy of FORD MOTOR COMPANY
