Occupant Classification System (OCS) Sensor - Vehicles With: Multi-Contour Seats: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.
NOTE: To prevent system failure, carry out the OCS reset when a front passenger seat cushion is disassembled, a new trim cover is installed or an OCS service kit is installed. Use a scan tool to carry out the OCS reset command.
NOTE: The cushion heater mat and multi-contour seat cushion adjuster on a front outboard passenger seat are not serviced separately. If a new cushion heater mat or a multi-contour seat cushion adjuster is needed on the front passenger seat, install an OCS service kit equipped with a heater mat or a multi-contour seat cushion adjuster. Failure to follow this instruction may result in incorrect operation of the OCS.
NOTE: OCS components (seat cushion foam pad, bladder with OCSM) are calibrated to each other and are serviced as an assembly. The OCS components are not to be installed separately. If a new OCS, OCS component or seat cushion foam pad are needed, a new OCS service kit (seat cushion foam pad, bladder with OCSM) must be installed as an assembly.
NOTE: Removal steps in this procedure may contain installation details.

All seats

  1. WARNING: Before beginning any service procedure, refer to health and safety warnings. Failure to follow this instruction may result in serious personal injury.

    Refer to: Pyrotechnic Device Health and Safety Precautions .

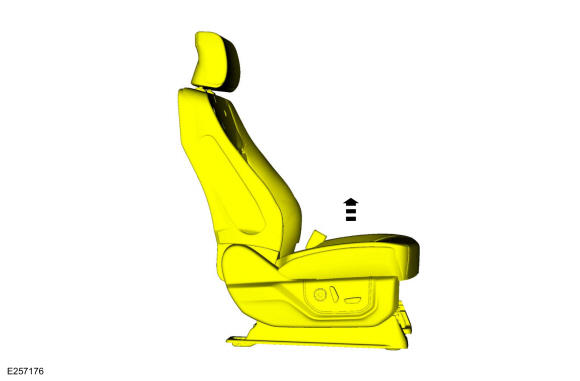

  2. Raise the seat to its highest point of travel and remove the front passenger seat. Refer to: Front Seat .
    GFD467190Courtesy of FORD MOTOR COMPANY

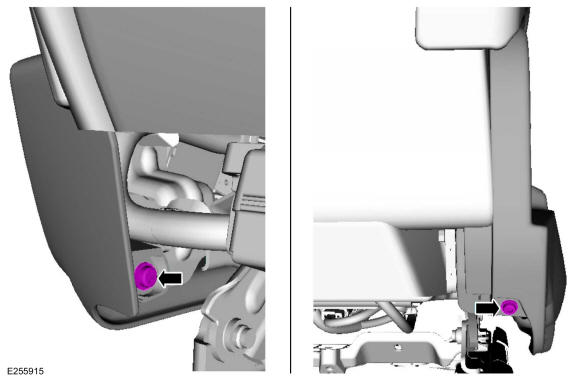

  3. Remove the side shield screws.
    GFD467191Courtesy of FORD MOTOR COMPANY

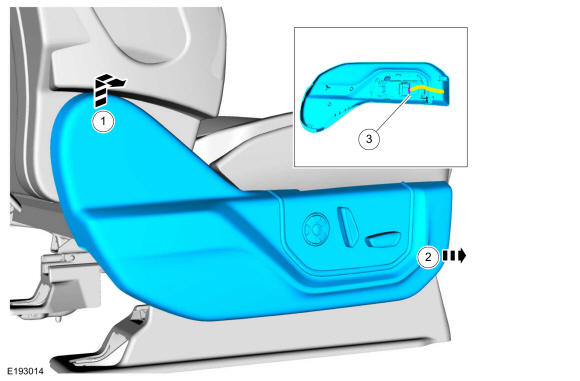

    1. Lift up on the rear of the side shield and pull outward.
    2. Push the side shield forward.
    3. Disconnect the electrical connector and remove the side shield.
    GFD467192Courtesy of FORD MOTOR COMPANY

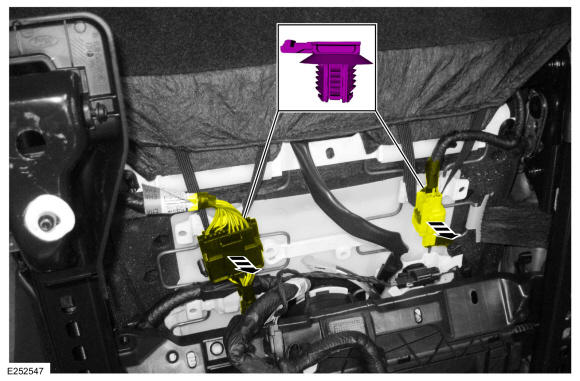

  5. Detach the electrical connector retainers and position the wire harnesses aside.
    GFD467193Courtesy of FORD MOTOR COMPANY

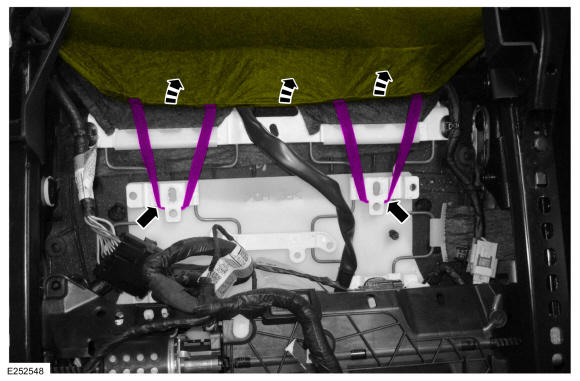

  6. Detach the backrest cover straps and position the backrest cover aside.
    GFD466654Courtesy of FORD MOTOR COMPANY

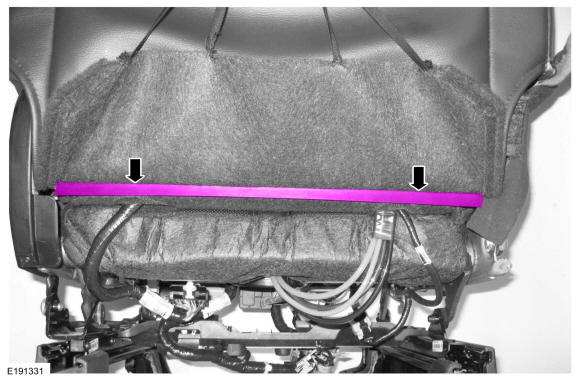

  7. Detach the backrest cover lower J-clips.
    GFD466552Courtesy of FORD MOTOR COMPANY

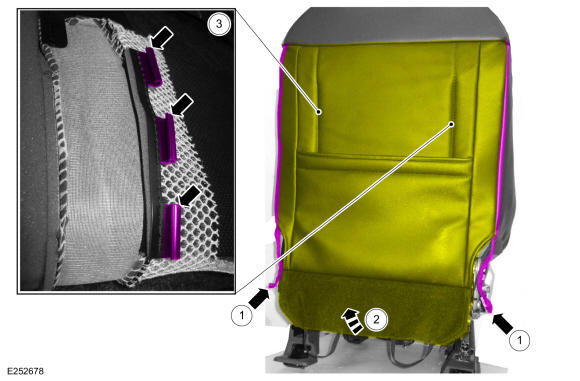

    1. Unzip the backrest cover zipper on each side.
    2. Position the backrest cover up.
    3. Detach the J-clips from the lumbar wire.
    GFD466554Courtesy of FORD MOTOR COMPANY

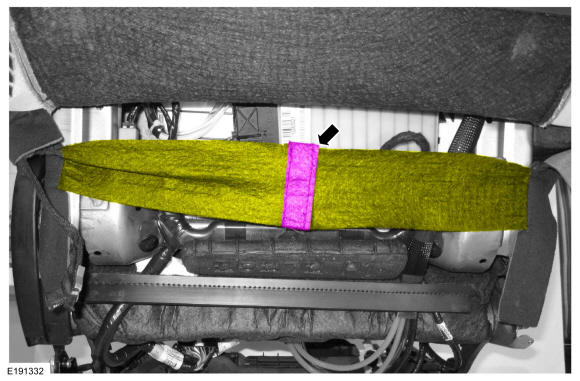

  9. Detach the hook-and-loop retainer and position the backrest cover strap aside.
    GFD466553Courtesy of FORD MOTOR COMPANY

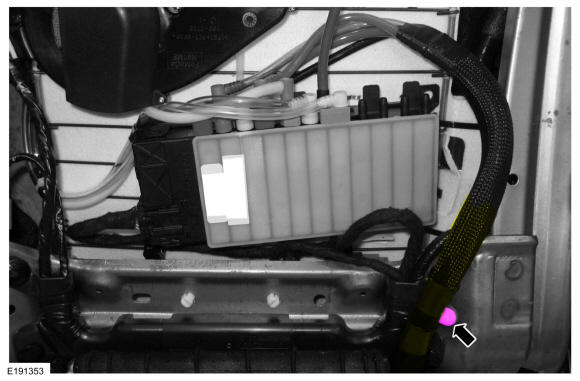

  10. Detach the multi-contour seat cushion adjuster hose retainer.
    GFD467194Courtesy of FORD MOTOR COMPANY

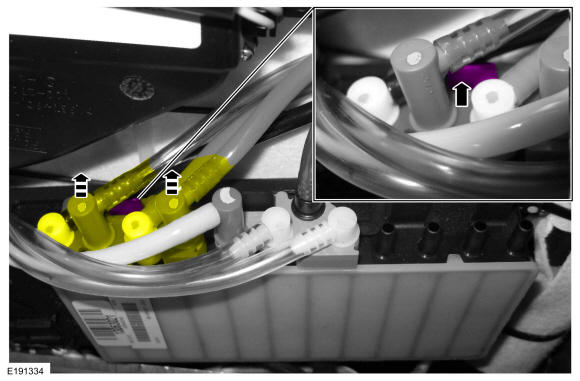

  11. Release the locking tab and disconnect the hose coupling assembly from the SCMH.
    GFD467195Courtesy of FORD MOTOR COMPANY

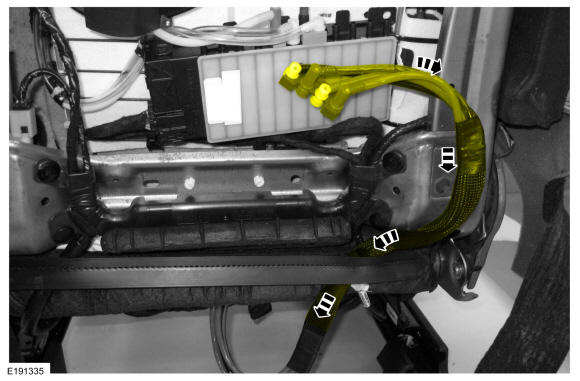

  12. Feed the multi-contour seat cushion adjuster hose assembly out through the backrest cover opening.
    GFD467196Courtesy of FORD MOTOR COMPANY

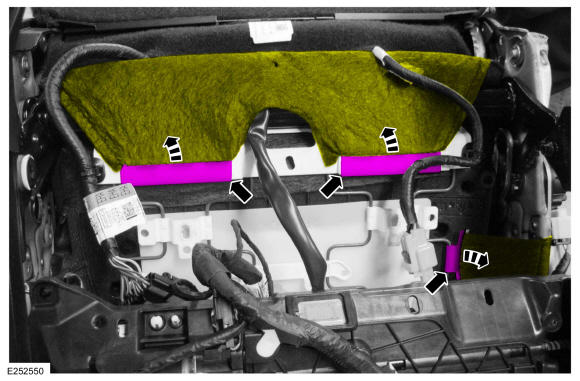

  13. Detach the cushion cover J-clips and position the cushion cover aside.
    GFD466633Courtesy of FORD MOTOR COMPANY

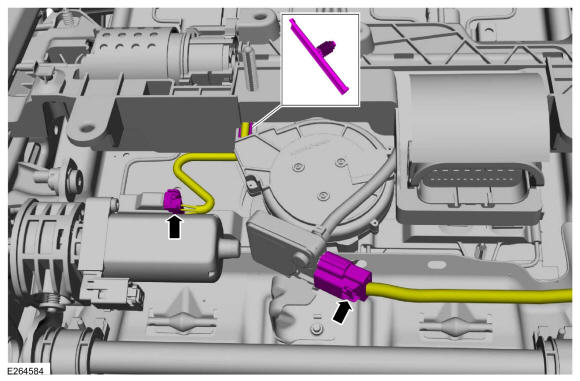

    • Disconnect the OCS sensor electrical connector.

    • Disconnect the heater mat electrical connector and detach the wiring harness retainer.

    GFD467197Courtesy of FORD MOTOR COMPANY

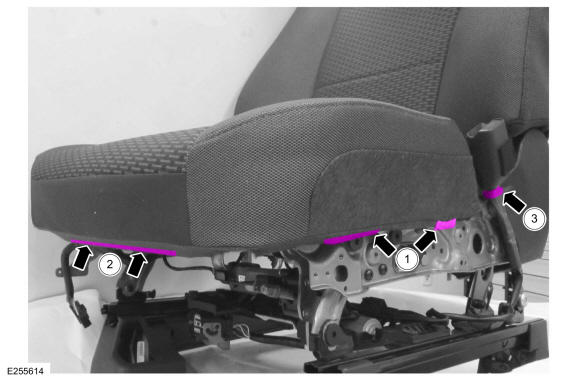

    1. On both sides, detach the cushion cover J-clips.
    2. Detach the cushion cover J-clip.
    3. Remove the strap from around the seatbelt buckle.
    GFD467198Courtesy of FORD MOTOR COMPANY

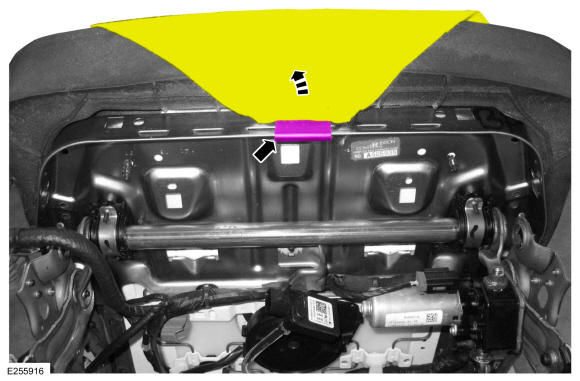

  16. Detach the cushion heater mat J-clip and position the mat upward.
    GFD467199Courtesy of FORD MOTOR COMPANY

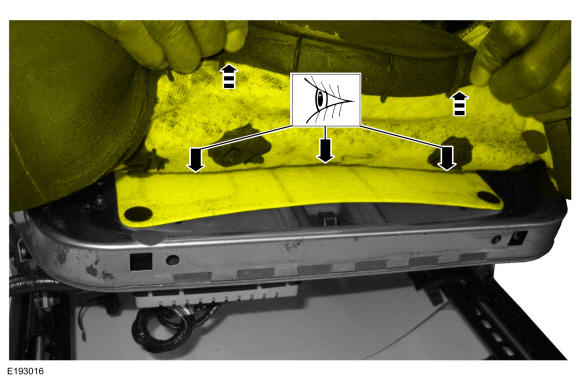

  17. Lift the cushion foam pad. If the cushion foam pad, multi-contour seat cushion adjuster and the OCS are adhered together, then the OCS is a service kit. If nothing is adhered together, then the OCS is OE (original equipment).
    GFD467200Courtesy of FORD MOTOR COMPANY

    Seats with an OE (original equipment) OCS (occupant classification system)

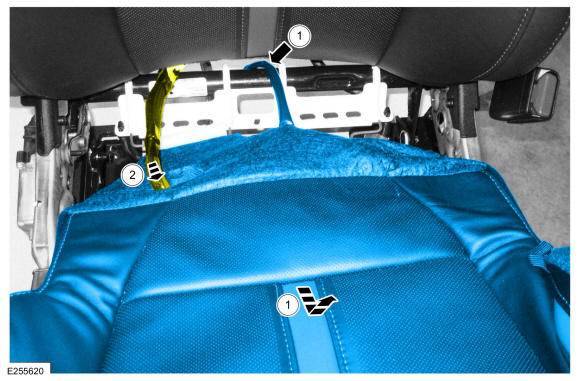

  18. Remove the cushion foam and cover as an assembly.

    1. Pull the cushion cover, foam and heater mat wiring harness pigtail out from between the seat track and backrest.
    2. Route the multi-contour seat cushion adjuster hose assembly through the cushion cover opening.

    GFD467201Courtesy of FORD MOTOR COMPANY

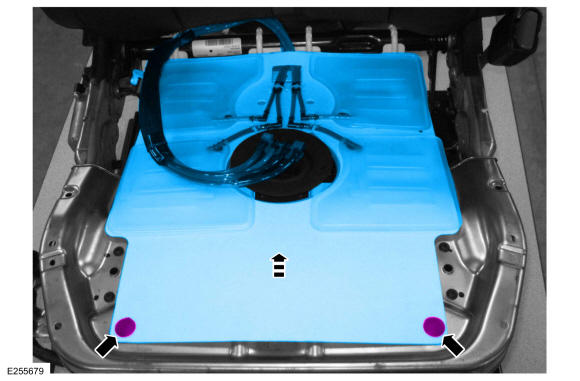

  19. Remove the pin-type retainers and the multi-contour seat cushion adjuster.
    GFD467202Courtesy of FORD MOTOR COMPANY

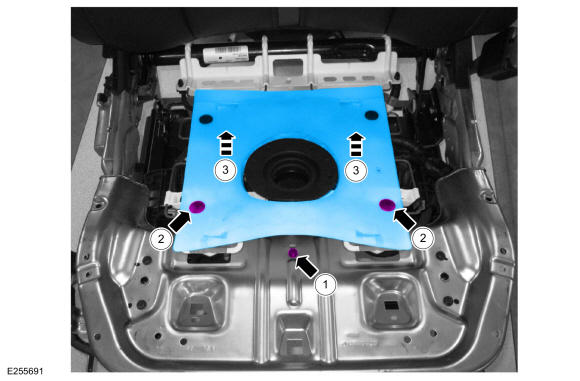

    1. Remove the OCS sensor bracket screw.

      Torque: 44 lb.in (5 Nm)

    2. Remove the OCS pin-type retainers.
    3. Lift the OCS up off the seat track and start removal.
    GFD467203Courtesy of FORD MOTOR COMPANY

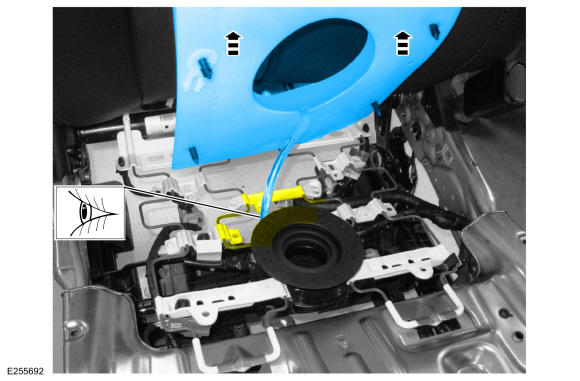

  21. NOTE: Note the location of the OCS hose as it passes through the seat cushion support for proper installation.

    Route out the OCS hose, sensor and sensor bracket from between the seat cushion support wires and remove the OCS.

    GFD467204Courtesy of FORD MOTOR COMPANY

    Seats with a service kit OCS (occupant classification system)

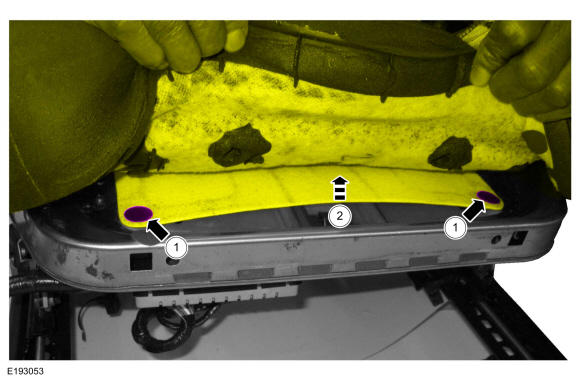

    1. Remove the multi-contour seat cushion adjuster pin-type retainers.
    2. Lift the front of the multi-contour seat cushion adjuster assembly to access the OCS pin-type retainers.
    GFD466642Courtesy of FORD MOTOR COMPANY

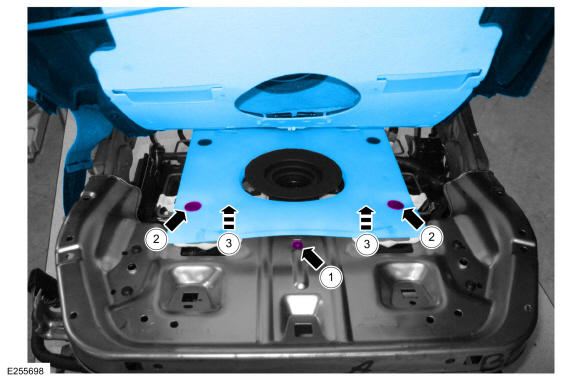

    1. Remove the OCS sensor bracket screw.

      Torque: 44 lb.in (5 Nm)

    2. Remove the OCS pin-type retainers.
    3. Lift the OCS up off the seat cushion and start removal.
    GFD466643Courtesy of FORD MOTOR COMPANY
  24. Route out the multi-contour seat cushion adjuster hose assembly and cushion heater mat wiring pigtail from between the seat cushion and backrest.
    GFD466644Courtesy of FORD MOTOR COMPANY

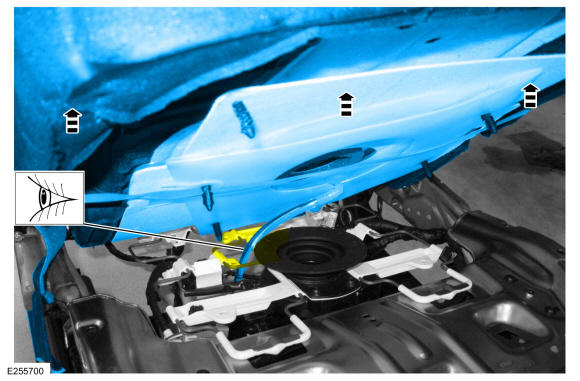

  25. NOTE: Note the location of the OCS hose as it passes through the seat cushion support for proper installation.

    Route the OCS hose, sensor and sensor bracket from between the seat cushion support wires and remove the OCS.

    GFD466645Courtesy of FORD MOTOR COMPANY

    All seats

  26. NOTE: This step is only necessary when installing a new OCS.
    NOTE: Follow the unique instructions or graphic for this step in the installation.

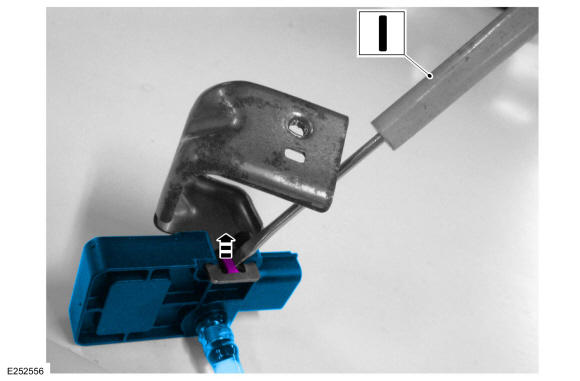

    Bend the tab up and slide the OCS sensor off the bracket.

    GFD467205Courtesy of FORD MOTOR COMPANY
  27. NOTE: This step is only necessary when installing a new OCS.

    Position the rear portion of the seat cushion cover from the foam.

    GFD466646Courtesy of FORD MOTOR COMPANY
  28. NOTE: Use care when separating the seat cushion from the hook-and-arrow or the hook may be torn from the seat cushion foam pad.
    NOTE: This step is only necessary when installing a new OCS.

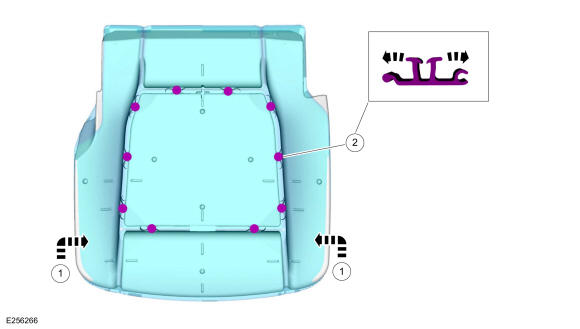

    Remove the seat cushion cover.

    1. Invert the seat cushion cover.
    2. Release the hook-and-arrows.

GFD467206Courtesy of FORD MOTOR COMPANY
