Front Impact Severity Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The following procedure prescribes critical repair steps required for correct restraint system operation during a crash. Follow all notes and steps carefully. Failure to follow step instructions may result in incorrect operation of the restraint system and increases the risk of serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Depower the SRS. Refer to: Supplemental Restraint System (SRS) Depowering .

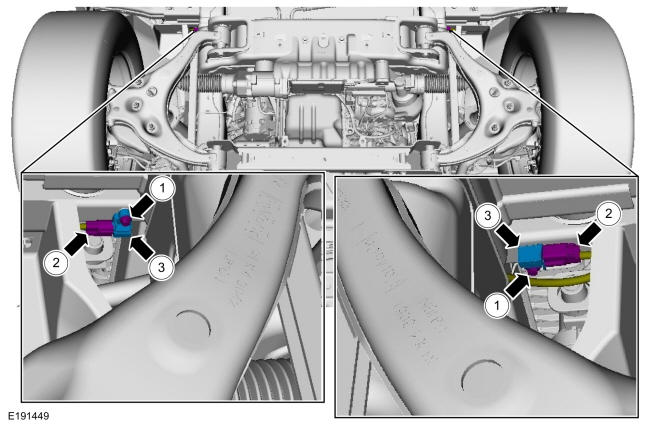

1. Remove the bolt.
  Torque: 93 lb.in (10.5 Nm)
2. Disconnect the electrical connector.
3. Remove the front impact severity sensor.

Courtesy of FORD MOTOR COMPANY
