Thermostatic Expansion Valve: Removal
WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging .

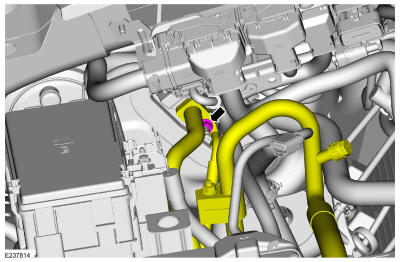

- Remove the evaporator inlet and outlet manifold bracket bolt.
Torque: 97 lb.in (11 Nm)
-
NOTE: Make sure that all openings are sealed.

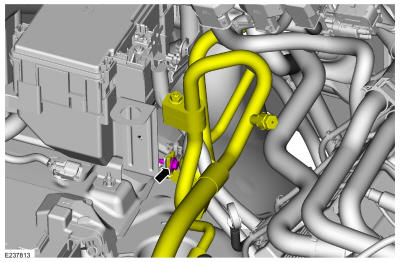

Remove the evaporator inlet and outlet manifold nut and disconnect the fitting.
Torque: 159 lb.in (18 Nm)
-
NOTE: Make sure that all openings are sealed.

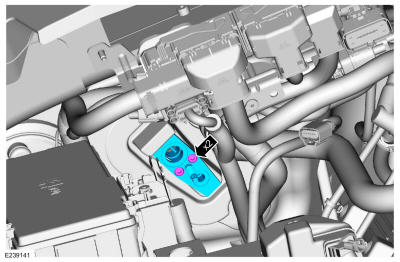

Remove bolts and the thermostatic expansion valve.
Torque: 71 lb.in (8 Nm)
