Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - Component Location
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Early build shown, late build similar.
 Courtesy of FORD MOTOR COMPANY
|

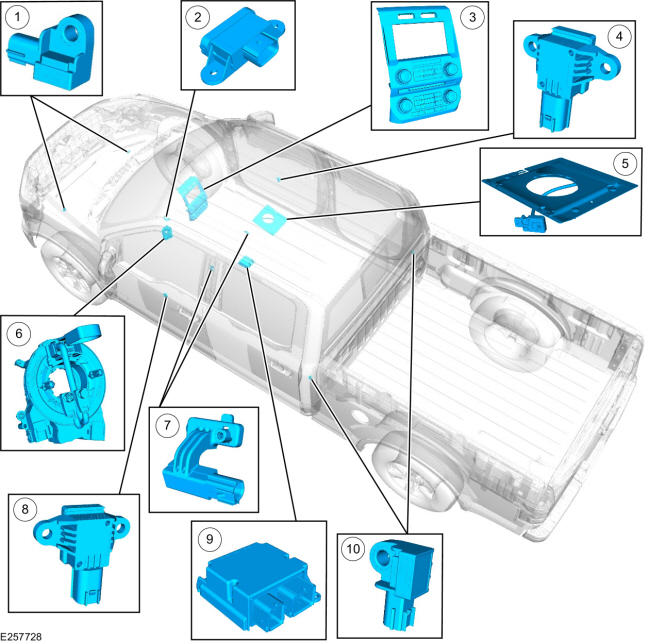

| Item |
Description |
| 1 |
LH and RH front impact severity sensors |
| 2 |
BECMB |
| 3 |
FCIM (includes PAD indicator) |
| 4 |
Passenger front door side impact sensor |
| 5 |
OCSM (includes OCS sensor and gel-filled bladder) |
| 6 |
Clockspring |
| 7 |
Seat position sensors |
| 8 |
Driver front door side impact sensor |
| 9 |
RCM |
| 10 |
LH and RH B-pillar side impact sensors (SuperCab) / LH and RH C-pillar side impact sensors (SuperCrew) |
 Courtesy of FORD MOTOR COMPANY
|

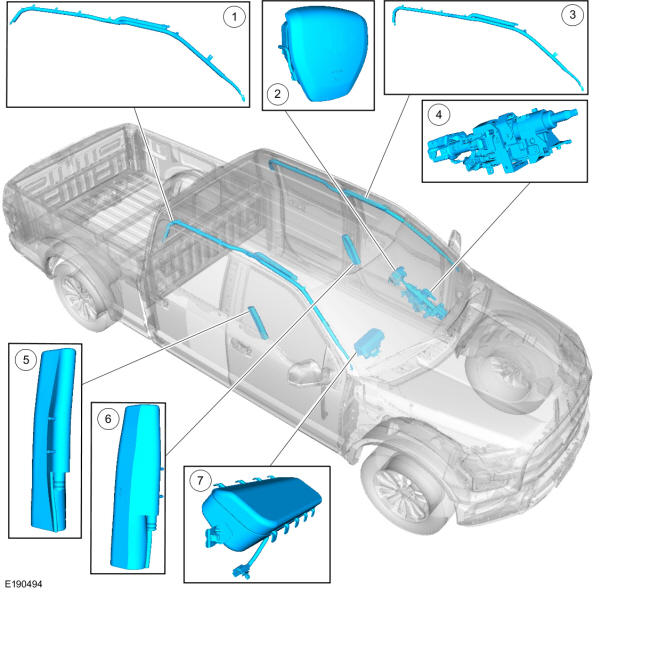

| Item |
Description |
| 1 |
RH side air curtain |
| 2 |
Driver airbag |
| 3 |
LH side air curtain |
| 4 |
Deployable steering column |
| 5 |
Passenger side airbag |
| 6 |
Driver side airbag |
| 7 |
Passenger airbag (includes canister vent) |
 Courtesy of FORD MOTOR COMPANY
|

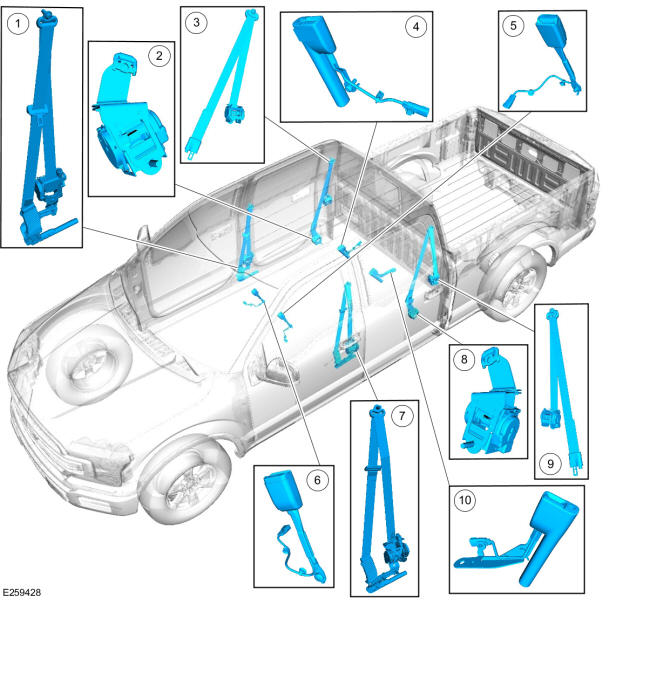

| Item |
Description |
| 1 |
Front passenger seatbelt retractor (includes retractor pretensioner and anchor pretensioner) (SuperCrew shown, other body styles similar) |
| 2 |
RH rear outer seatbelt lower retractor (SuperCrew only, if equipped with inflatable seatbelts) |
| 3 |
RH rear outer seatbelt upper retractor (SuperCrew only, if equipped with inflatable seatbelts) |
| 4 |
RH rear outer seatbelt buckle assembly (SuperCrew only, if equipped with inflatable seatbelts) (includes seatbelt buckle, buckle switch and seatbelt inflator) |
| 5 |
Driver seatbelt buckle (includes buckle switch) |
| 6 |
Front passenger seatbelt buckle (includes buckle switch) |
| 7 |
Driver seatbelt retractor (includes retractor pretensioner and anchor pretensioner) (SuperCrew shown, other body styles similar) |
| 8 |
LH rear outer seatbelt lower retractor (SuperCrew only, if equipped with inflatable seatbelts) |
| 9 |
LH rear outer seatbelt upper retractor (SuperCrew only, if equipped with inflatable seatbelts) |
| 10 |
LH rear outer seatbelt buckle assembly (SuperCrew only, if equipped with inflatable seatbelts) (includes seatbelt buckle, buckle switch and seatbelt inflator) |
