Wheel Speed Sensor Ring: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the axle shaft. Refer to: Axle Shaft - 8.8 Inch Ring Gear . Refer to: Axle Shaft - 9.75 Inch Ring Gear .

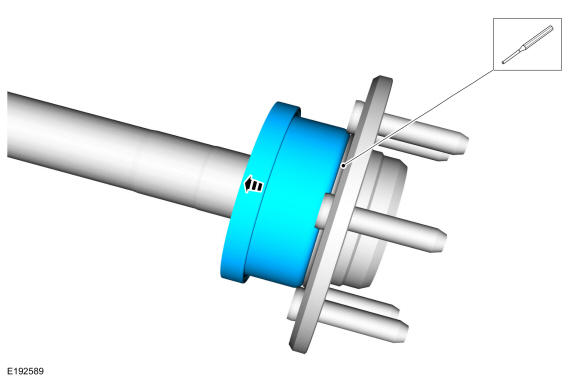

- Using a suitable driver, remove the wheel speed sensor ring. Use the General Equipment: Punch
