Hydraulic Control Unit (HCU): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.

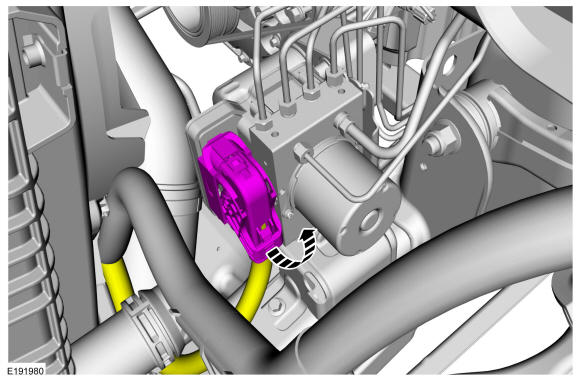

Disconnect the ABS module electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Make sure that all openings are sealed.

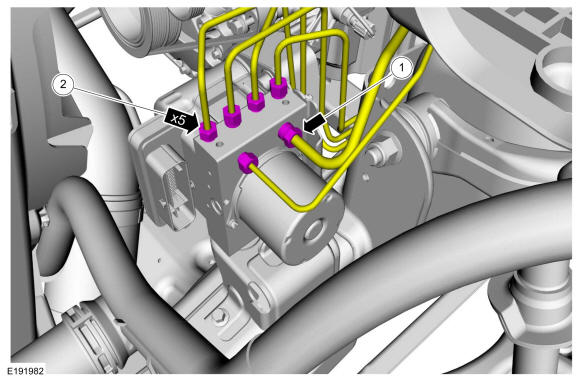

Disconnect the brake tube fittings.
- Disconnect the brake tube fitting.
  Torque

  : 22 lb.ft (30 Nm)
- Disconnect the 5 remaining brake tube fittings.
  Torque

  : 177 lb.in (20 Nm)
Courtesy of FORD MOTOR COMPANY

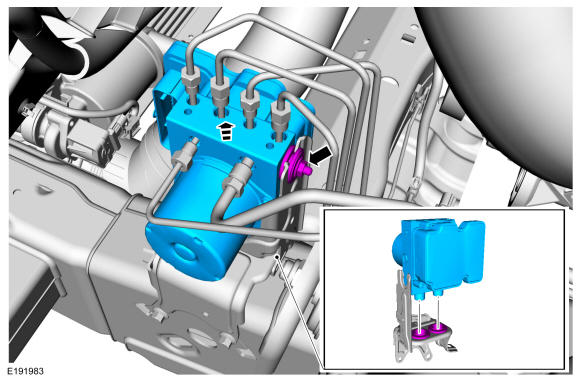

Remove the nut and the HCU and ABS module assembly.
Torque

: 177 lb.in (20 Nm)
