Engine Oil Pressure (EOP) Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

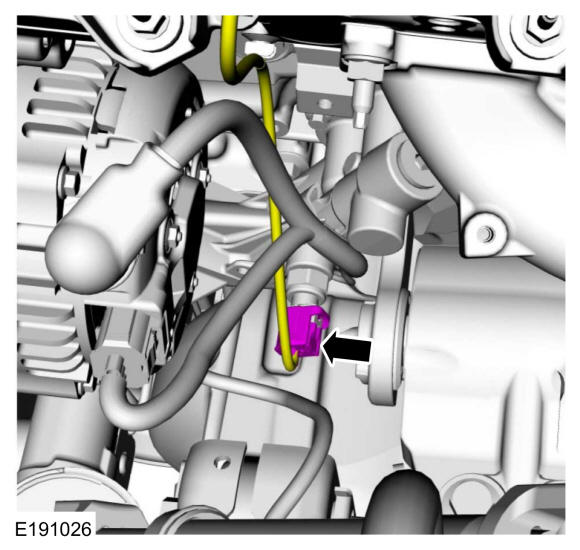

  1. Disconnect the oil pressure sensor electrical connector.
    GFD463223Courtesy of FORD MOTOR COMPANY

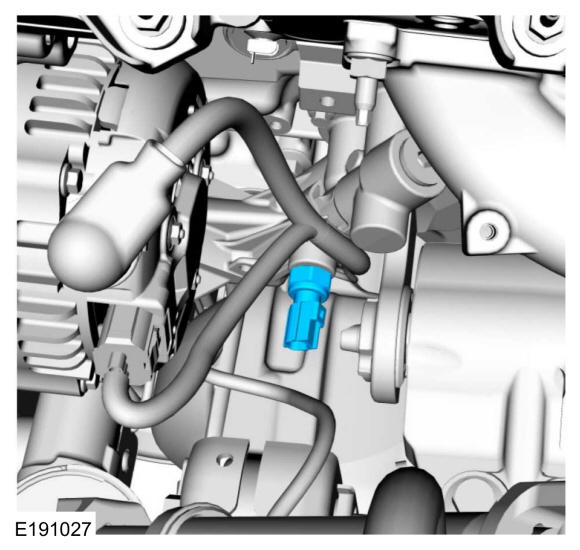

  2. Remove the oil pressure sensor.

    Torque: 133 lb.in (15 Nm)

GFD463224Courtesy of FORD MOTOR COMPANY
