Cylinder Head Temperature (CHT) Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the RH fender splash shield. Refer to: Fender Splash Shield .
Disconnect the transmission wiring harness retainers from the stud bolts.

Courtesy of FORD MOTOR COMPANY
Remove the stud bolts and the heat shield.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

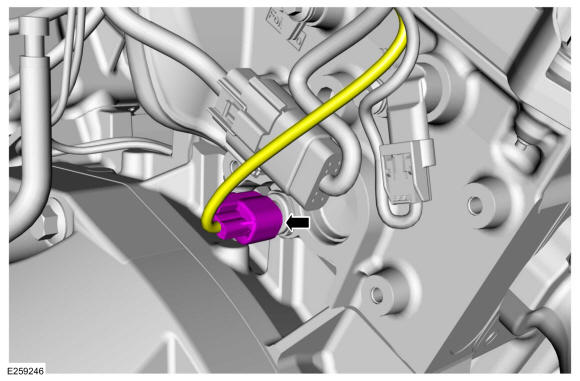

Disconnect the CHT electrical connector.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not reuse the CHT sensor, install a new sensor.

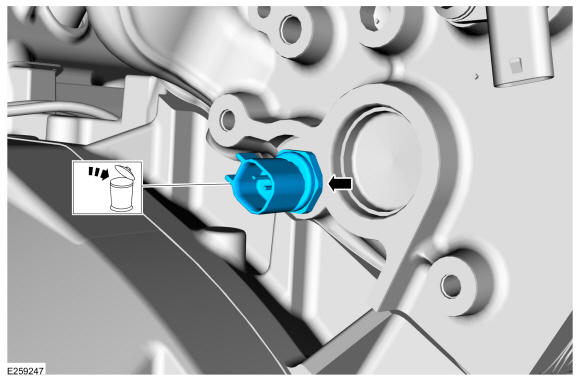

Remove and discard the CHT sensor.

Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
