Battery Tray: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the battery. Refer to: Battery .

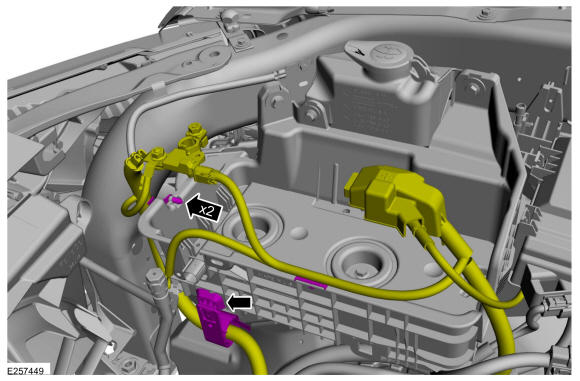

- Detach the battery cable retainers from the battery tray.

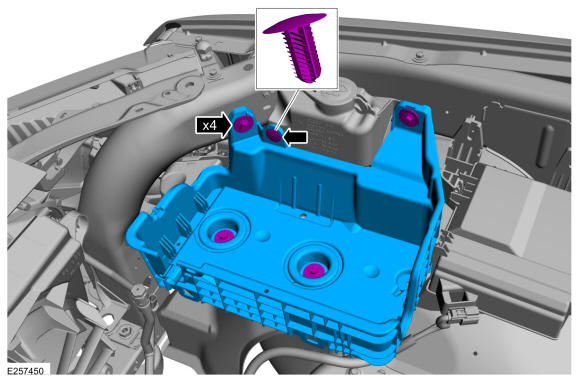

- Remove the pushpin, bolts and the battery tray.
Torque: 18 lb.ft (25 Nm)
