Front Suspension Height Sensor: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Remove the wheel and tire. Refer to: Wheel and Tire .
NOTE: Note the position of the components before removal.

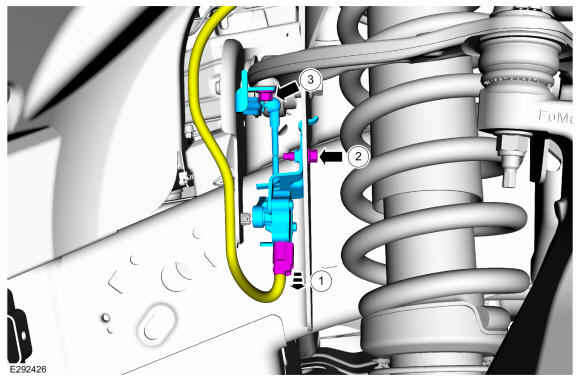

NOTE: LH height sensor assembly shown, RH similar.
1. Disconnect the height sensor electrical connector.
2. Remove the bolt and detach the height sensor arm from the upper control arm.
  Torque: 177 lb.in (20 Nm)
3. Remove the height sensor bracket bolt and remove the height sensor.
  Torque: 177 lb.in (20 Nm)
