Spot Lamp Switch: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

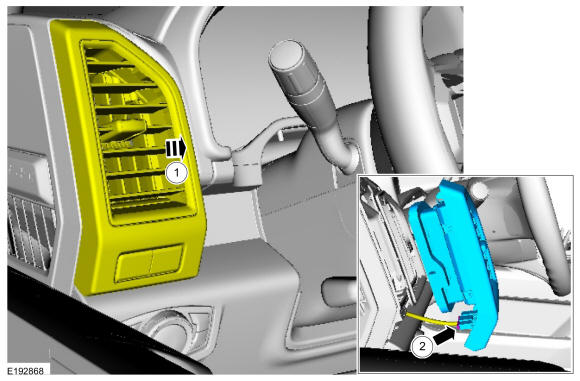

- Remove the LH instrument panel vent.
- Position the LH instrument panel vent aside.
- Disconnect the LH instrument panel vent electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

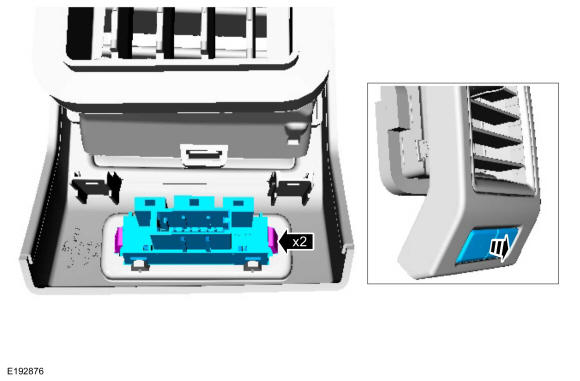

- Release the locking tabs and remove the spot lamp switch.
 Courtesy of FORD MOTOR COMPANY
|
