Spot Lamp Control Module: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

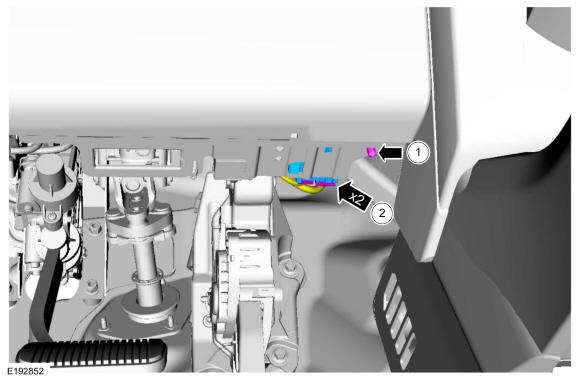

  1. Remove the spot lamp control module.

    1. Release the push pin and position the spot lamp control module aside.
    2. Disconnect the spot lamp control module electrical connectors.

GFD466022Courtesy of FORD MOTOR COMPANY
