Rear Lamp Assembly: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

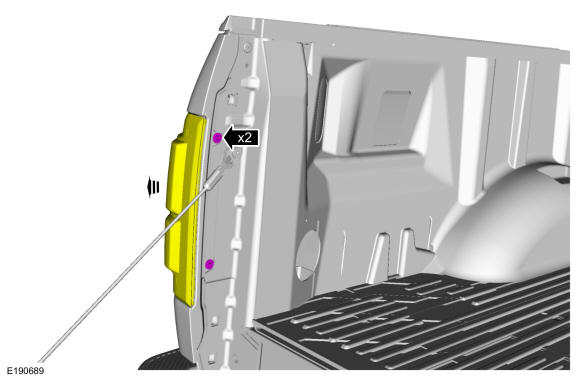

All vehicles

Remove the screws and position the rear lamp assembly aside.

Courtesy of FORD MOTOR COMPANY

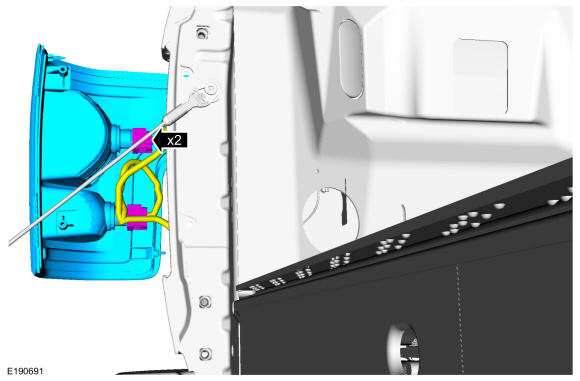

Vehicles with incandescent lamps
Disconnect the rear lamp assembly electrical connectors.

Courtesy of FORD MOTOR COMPANY

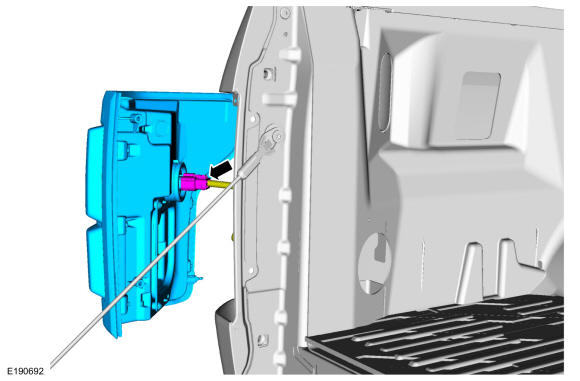

Vehicles with LED lamps
Disconnect the rear lamp assembly electrical connector.

Courtesy of FORD MOTOR COMPANY
Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .
NOTE: If equipped with SODL or SODR.

NOTE: Carry out this step only if installing a new rear lamp assembly.

Remove the screws and position the SODL or SODR cover aside.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with SODL or SODR.

NOTE: Carry out this step only if installing a new rear lamp assembly.

Remove the SODL or SODR.
1. Disconnect the electrical connector.
2. Remove the screws.

Courtesy of FORD MOTOR COMPANY
