Headlamp Switch: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE:
Push button start vehicle shown, all others similar.

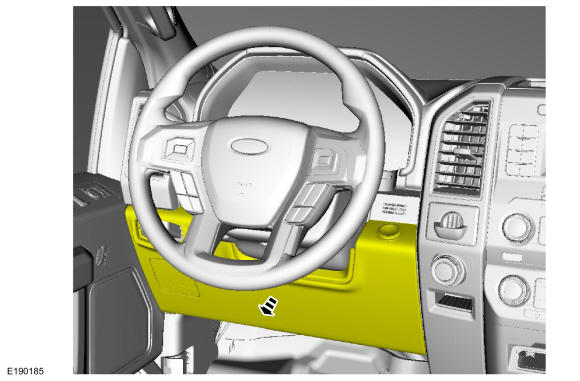

Lower the steering column opening trim panel.
 Courtesy of FORD MOTOR COMPANY
|

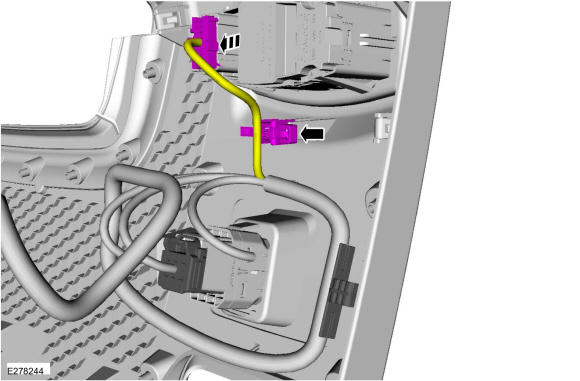

- Disconnect the electrical connector and harness retainer.
 Courtesy of FORD MOTOR COMPANY
|

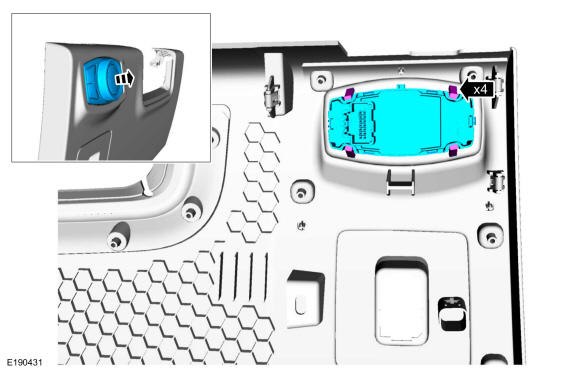

- Release the tabs and remove the headlamp switch.
 Courtesy of FORD MOTOR COMPANY
|
