Front Turn Signal Lamp Bulb: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with headlamps

  1. Bulbs are not serviceable on LED headlamps. Replace the headlamp assembly.

    Vehicles equipped with halogen headlamps

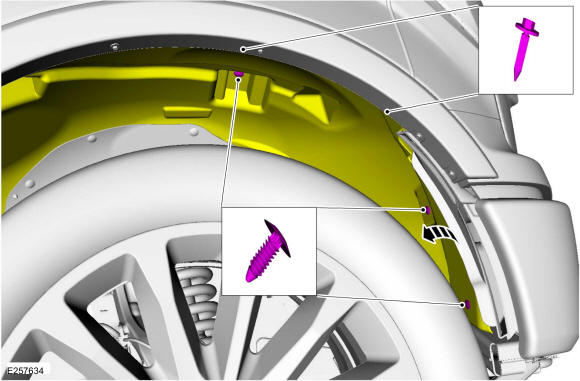

  2. Remove the push pins and screws, Position the fender liner aside.
    GFD465995Courtesy of FORD MOTOR COMPANY

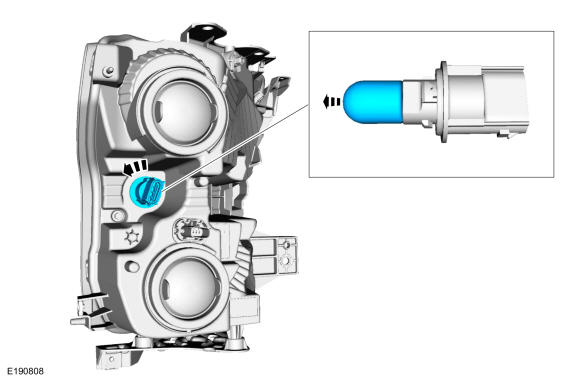

  3. Remove the bulb holder and remove the turn signal bulb.
GFD465997Courtesy of FORD MOTOR COMPANY
