Front Fog Lamp: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the front bumper. Refer to: Front Bumper - Raptor .
-
NOTE: On both sides.

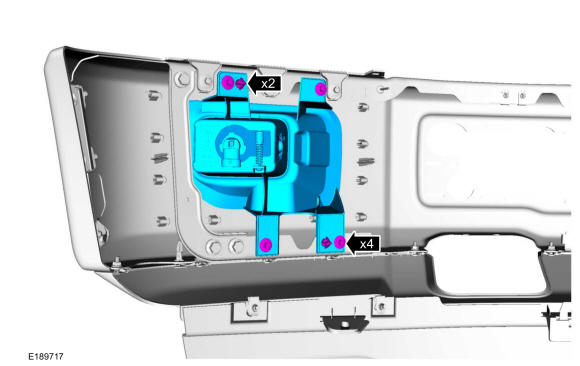

Remove the fog lamp bolts, release the push pins and remove the fog lamp assembly.
Torque: 48 lb.in (5.4 Nm)
