Oil Pressure Control Solenoid: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the LH fender splash shield. Refer to: Fender Splash Shield .

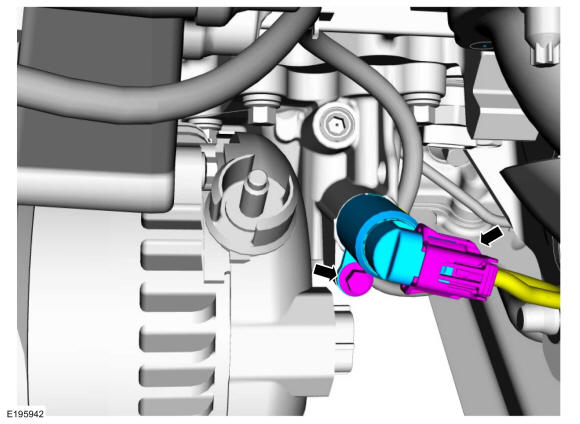

- Disconnect the electrical connector, remove the bolt and the oil pressure control solenoid.
Torque: 97 lb.in (11 Nm)
