Camshaft Position (CMP) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

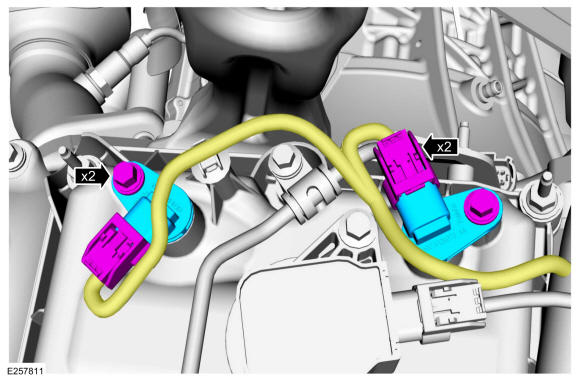

RH (right-hand) Camshaft Position (CMP) Sensors
-
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
Torque: 66 lb.in (7.5 Nm)
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
Torque: 66 lb.in (7.5 Nm)

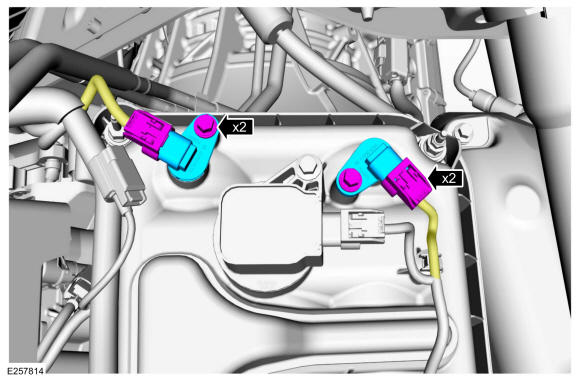

LH (left-hand) Camshaft Position (CMP) Sensors
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
-
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
Torque: 66 lb.in (7.5 Nm)
- Disconnect the intake CMP sensor electrical connector and remove the retainer and the CMP sensor.
Material: Engine Oil - SAE 5W-20 - Synthetic Blend Motor Oil / XO-5W20-Q1SP (WSS-M2C945-B1)
Torque: 66 lb.in (7.5 Nm)
- Disconnect the exhaust CMP sensor electrical connector and remove the retainer and the CMP sensor.
