Turbocharger Bypass Valve: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Disconnect the CAC to throttle body inlet pipe. Disconnect the quick connect coupling at the turbocharger bypass valve. Refer to QUICK RELEASE COUPLING

Courtesy of FORD MOTOR COMPANY

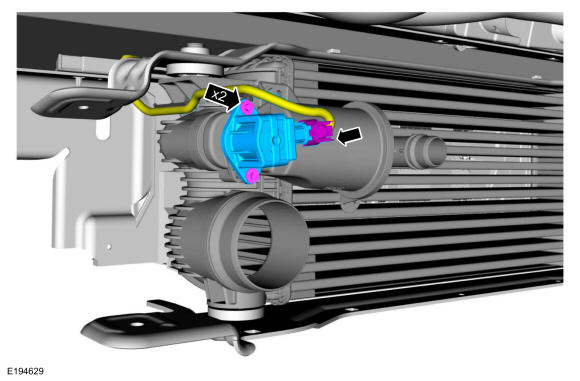

Disconnect the electrical connector, remove the retainers and the turbocharger bypass valve.
Torque: 53 lb.in (6 Nm)

Courtesy of FORD MOTOR COMPANY
