Heated Oxygen Sensor (HO2S): Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All sensors

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
If equipped, remove the underbody shield.

Courtesy of FORD MOTOR COMPANY

Right hand (RH) Heated oxygen sensor (HO2S)

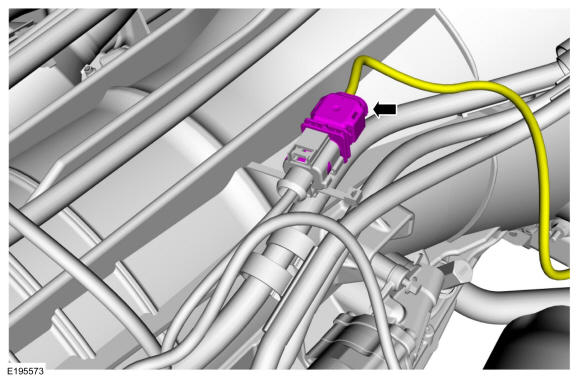

Disconnect the HO2S electrical connector.

Courtesy of FORD MOTOR COMPANY

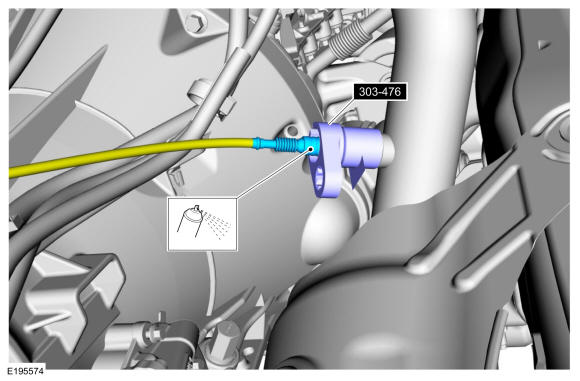

Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

Courtesy of FORD MOTOR COMPANY

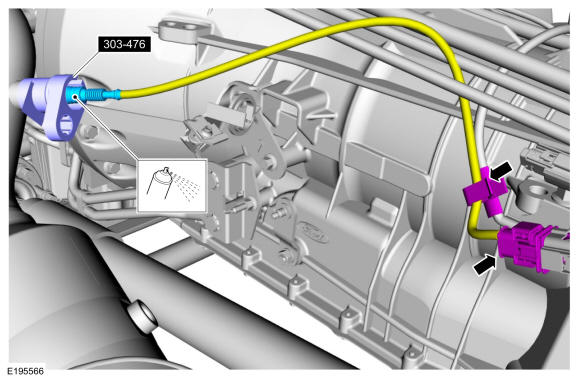

Left hand (LH) Heated oxygen sensor (HO2S)
- Disconnect the electrical connector and remove the harness retainer.
- Apply penetrating oil to sensor, using the special tool remove the HO2S. Use Special Service Tool: 303-476 (T94P-9472-A) Socket, Exhaust Gas Oxygen Sensor.
  Material: Motorcraft® Penetrating and Lock Lubricant / XL-1

Courtesy of FORD MOTOR COMPANY
