Exhaust Pressure Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

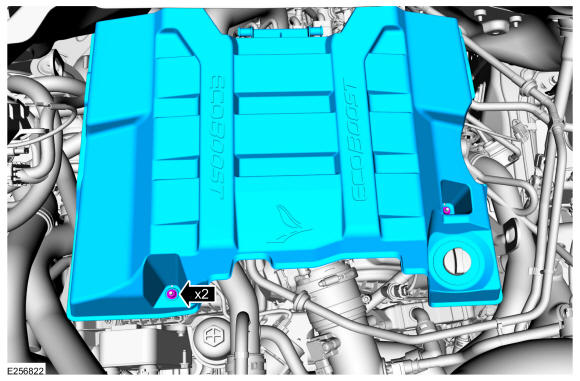

- Remove the nuts and the engine appearance cover
Torque: 42 lb.in (4.8 Nm)
 Courtesy of FORD MOTOR COMPANY
|

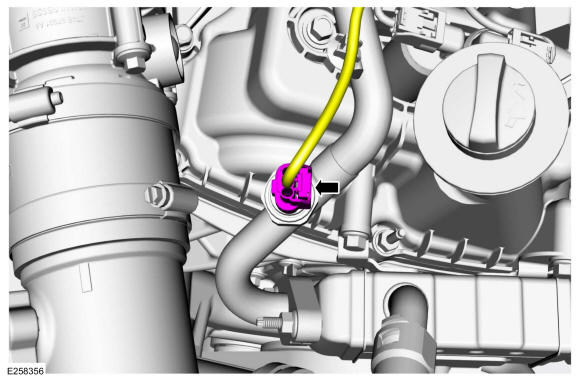

- Disconnect the electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

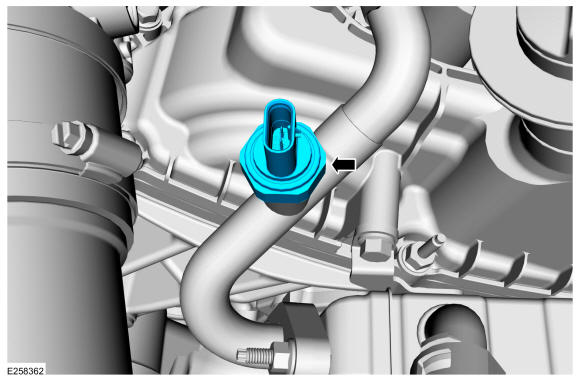

- Remove the exhaust pressure sensor.
Torque: 106 lb.in (12 Nm)
 Courtesy of FORD MOTOR COMPANY
|
