Engine Coolant Temperature (ECT) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the coolant outlet connector. Refer to Coolant Outlet Connector

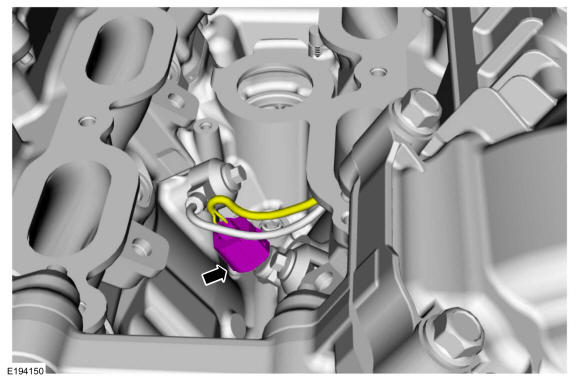

- Disconnect the ECT sensor electrical connector.
-
NOTE: Do not reuse the ECT sensor, install a new sensor.

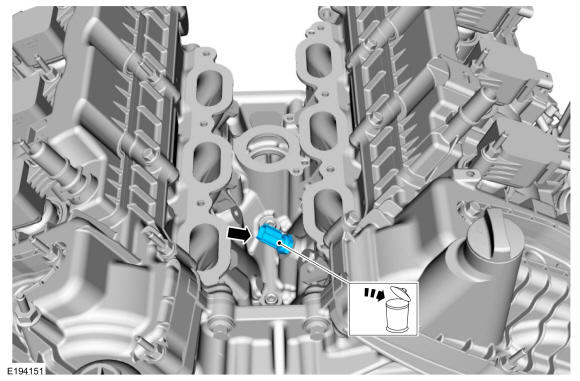

Remove and discard the ECT sensor.
Torque: 142 lb.in (16 Nm)
