Crankshaft Position (CKP) Sensor: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.

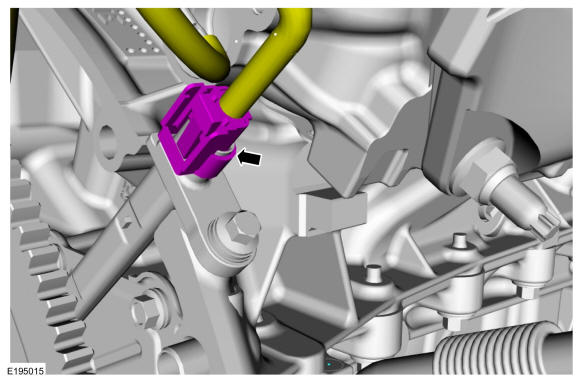

- Disconnect the CKP sensor electrical connector.
 Courtesy of FORD MOTOR COMPANY
|

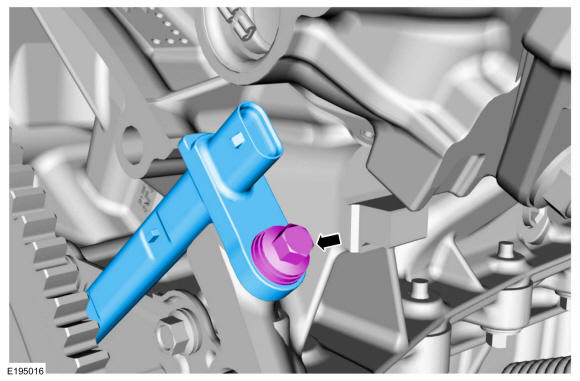

- Remove the retainer and CKP sensor.
Torque: 89 lb.in (10 Nm)
 Courtesy of FORD MOTOR COMPANY
|
