Instrument Panel Cluster (IPC) Lens: Removal

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IPC. Refer to: Instrument Panel Cluster (IPC) .

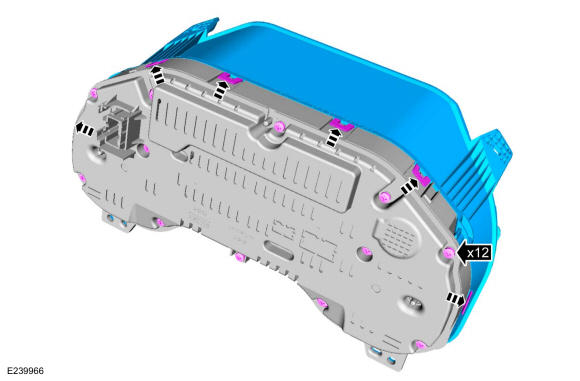

  2. Remove the screws, release the tabs and remove the IPC lens.
GFD205797Courtesy of FORD MOTOR COMPANY
