Instrument Panel Cluster (IPC) Lens: Installation

WARNING: This page is about a different car, the 2018 Ford F-550 Super Duty, 2018 Ford F-450 Super Duty, 2018 Ford F-350 Super Duty, and 2018 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
    • Install the IPC lens until the tabs have snapped into place.

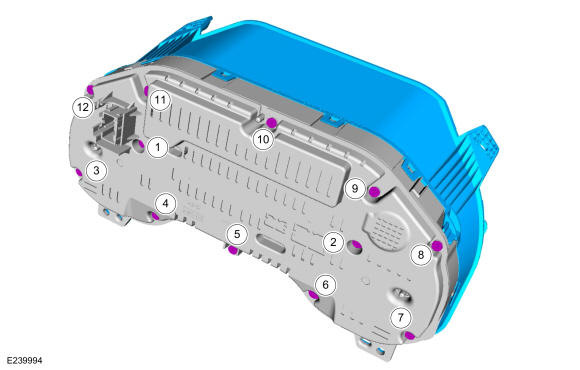

    • Torque the screws following the pattern shown in illustration.

      Torque: 10 lb.in (1.1 Nm)

    GFD205798Courtesy of FORD MOTOR COMPANY
  2. Install the IPC. Refer to: Instrument Panel Cluster (IPC) .
