Instrument Panel Cluster (IPC) - Overview
Overview
The IPC uses gauges, warning and informational indicators, RTT indicators, warning messages and chimes to alert the driver of vehicle conditions and system operation. The message center provides menu selections to configure various vehicle features. For a complete list and description of the features the message center controls, refer to the Owner's Literature.
The IPC provides a single display screen that contains the message center, RTT indication and virtual gauge displays.
Informational indicators inform the driver of conditions that exist in the vehicle. Warning indicators provide information to the driver of conditions that could potentially cause personal injury or alter vehicle performance.
RTT indicators illuminate in the message center and replace traditional informational or warning indicators, using the same iconic representation. The message center uses a rotating RTT display area that can display multiple indicators, dedicated RTT displays and fixed locations for other RTT indicators and displays.

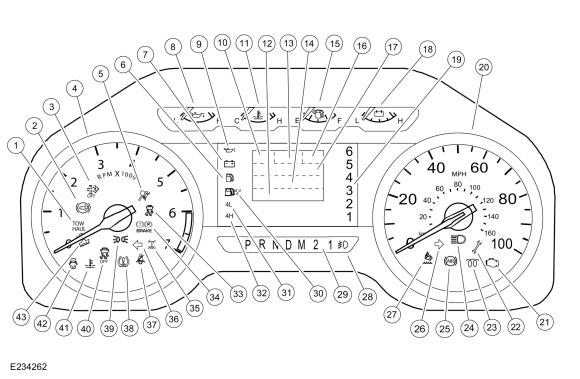

Base IPC
Base IPC
| Item | Description |
|---|---|
| 1 | Tow haul indicator |
| 2 | Engine brake indicator |
| 3 | DPF auto regeneration (diesel only) |
| 4 | Tachometer |
| 5 | Airbag warning indicator |
| 6 | Low fuel indicator |
| 7 | Charging system warning indicator |
| 8 | Oil pressure gauge |
| 9 | Low oil pressure warning indicator |
| 10 | Upshift RTT indicator (manual transmission) |
| 11 | Engine temperature gauge |
| 12 | Odometer display area |
| 13 | Cruise control RTT indicator |
| 14 | Trip computer display area (may also use the cruise control display area as needed) |
| 15 | Fuel gauge |
| 16 | Compass display |
| 17 | Cruise control and set speed display area (may also use the trip computer and odometer display areas as needed) |
| 18 | Charging system gauge |
| 19 | Progressive range select/select shift display |
| 20 | Speedometer |
| 21 | MIL |
| 22 | Powertrain malfunction (wrench) indicator |
| 23 | Wait to start indicator |
| 24 | High beam indicator |
| 25 | ABS indicator |
| 26 | RH turn indicator |
| 27 | Diesel exhaust fluid level indicator |
| 28 | Front fog lamp indicator |
| 29 | PRNDL display |
| 30 | Water in fuel indicator |
| 31 | 4x4 low indicator |
| 32 | 4x4 high indicator |
| 33 | Stability-traction control indicator (sliding car icon) |
| 34 | Brake warning indicator |
| 35 | ELD indicator |
| 36 | LH turn indicator |
| 37 | Seatbelt warning indicator |
| 38 | TPMS indicator |
| 39 | Lights on indicator |
| 40 | Stability-traction control disabled indicator (sliding car OFF icon) |
| 41 | Engine over-temperature warning indicator |
| 42 | Door ajar warning indicator |
| 43 | Hill descent control indicator |

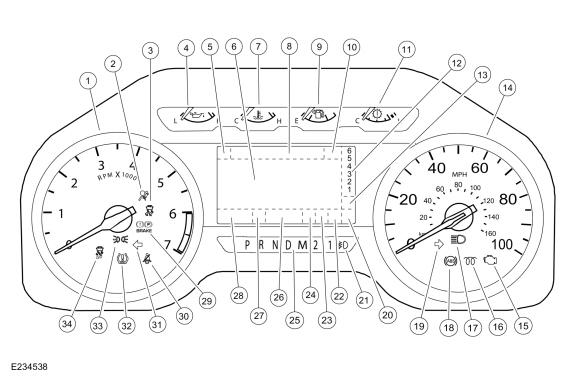

Mid-Level IPC
Mid-Level IPC
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Airbag warning indicator |
| 3 | Stability-traction control indicator (sliding car icon) |
| 4 | Oil pressure gauge |
| 5 | Main menu navigation icon |
| 6 | Main menu display area |
| 7 | Engine temperature gauge |
| 8 | Sub-menu display area |
| 9 | Fuel gauge |
| 10 | Compass |
| 11 | Transmission temperature gauge |
| 12 | Manual shift mode, progressive range select and SelectShift ® display |
| 13 | Cruise control set speed RTT indicator |
| 14 | Speedometer |
| 15 | MIL |
| 16 | Wait to start indicator (diesel only) |
| 17 | High beam indicator |
| 18 | ABS indicator |
| 19 | RH turn indicator |
| 20 | Cruise control RTT indicator |
| 21 | Front fog lamp RTT indicator |
| 22 | 4WD (2H, 4L and 4H) RTT indicator |
| 23 | ELDRTT indicator |
| 24 | Diesel exhaust fluid level RTT indicator (diesel only) |
| 25 | PRNDL display |
| 26 | Rotating RTT display area Adaptive steering Blind Spot Information System (BLIS ®) disabled Charging system DPF auto regeneration (diesel only) Door ajar warning Engine over-temperature warning Hill descent control Hood ajar warning Low engine oil pressure warning Low fuel Low washer fluid level Powertrain malfunction (wrench) Tow haul Water in fuel (diesel only) |
| 27 | Engine brake RTT indicator (diesel only) |
| 28 | Odometer |
| 29 | Brake warning indicator |
| 30 | Seatbelt warning indicator Brake warning indicator |
| 31 | LH turn indicator |
| 32 | TPMS indicator |
| 33 | Lights on indicator |
| 34 | Stability-traction control disabled indicator (sliding car OFF icon) |

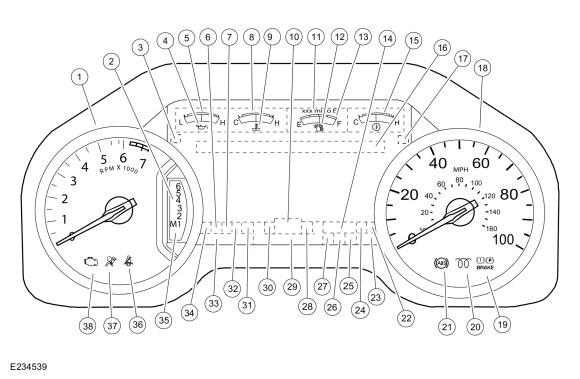

High-Level IPC
High-Level IPC
| Item | Description |
|---|---|
| 1 | Tachometer |
| 2 | Progressive range select/select shift display |
| 3 | LH turn indicator |
| 4 | Low engine oil pressure warning RTT indicator |
| 5 | Virtual engine oil pressure gauge |
| 6 | Engine brake RTT indicator (diesel only) |
| 7 | Stability-traction control indicator or RTT indicator (sliding car icon) |
| 8 | Virtual engine temperature gauge |
| 9 | Engine over-temperature warning RTT indicator |
| 10 | Cruise control and set speed display (non-ACC) ACC and lane keeping system display |
| 11 | DTE display |
| 12 | Low fuel RTT indicator |
| 13 | Virtual fuel gauge |
| 14 | Rotating RTT display area AFS BLIS off Charging system DPF auto regeneration (diesel only) Door ajar warning ELD Hill descent Hood ajar warning Low washer fluid level Powertrain malfunction (wrench) Overspeed warning (Gulf Coast Countries [GCC] only) Water in fuel (diesel only) |
| 15 | Configurable virtual gauge Transmission temperature gauge Turbo boost gauge |
| 16 | Main menu tabbed navigation |
| 17 | RH turn indicator |
| 18 | Speedometer |
| 19 | Brake warning indicator |
| 20 | Wait to start indicator (diesel only) |
| 21 | ABS indicator |
| 22 | Front fog lamp RTT |
| 23 | Compass |
| 24 | Diesel exhaust fluid level RTT indicator |
| 25 | Lights on RTT indicator |
| 26 | Auto high beam RTT indicator |
| 27 | TPMSRTT indicator |
| 28 | ACC set speed |
| 29 | PRNDL display area |
| 30 | ACCRTT indicator |
| 31 | High beam indicator |
| 32 | Stability-traction control disabled indicator or RTT indicator (sliding car OFF icon) |
| 33 | Odometer |
| 34 | 4WD (2H, 4L and 4H) RTT indicator |
| 35 | Tow haul RTT |
| 36 | Seatbelt warning indicator |
| 37 | Airbag warning indicator |
| 38 | MIL |
Network Messaged Inputs
Module messaging is the standard for sending and receiving information required to operate the IPC. The majority of the inputs required to operate the IPC are received over the HS-CAN3.
Hardwired Inputs
The IPC requires hardwired inputs from components that are not on the CAN. These components are required for specific IPC functions.
The hardwired inputs are provided by the following components:
- 4WD mode indicator switch (manual 4WD only)
- Fuel pump assembly
- Fuel level sensor (dual tanks only)
- Hill descent control switch
- Low washer fluid level switch
- Park detect switch (part of the floor shifter assembly)
- Traction control disable switch
