Ignition Switch: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column shrouds. Refer to: Steering Column Shrouds .
  2. Disconnect the ignition switch electrical connector.
    GFD458684Courtesy of FORD MOTOR COMPANY

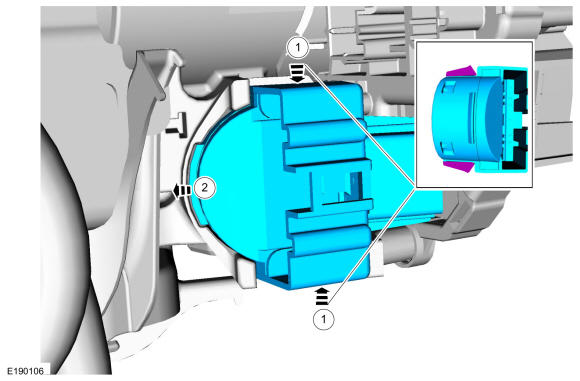

    1. Push in the ignition switch tabs.
    2. Remove the ignition switch.
GFD458685Courtesy of FORD MOTOR COMPANY
