Ignition Switch - Vehicles With: Keyless Vehicle System: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the steering column opening trim panel.
    GFD458686Courtesy of FORD MOTOR COMPANY

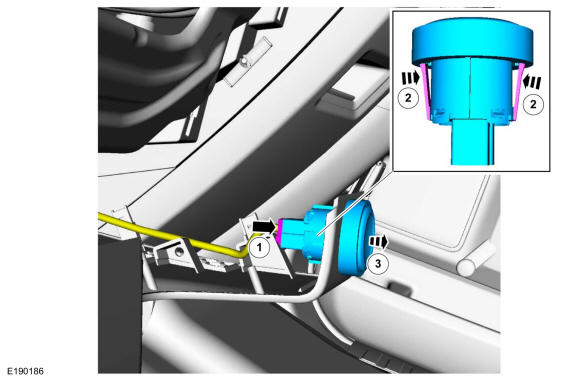

  2. Remove the start/stop switch

    1. Disconnect the start/stop switch electrical connector.
    2. Release the start/stop switch tabs.
    3. Push the start/stop switch out of the steering column opening trim panel.

GFD458687Courtesy of FORD MOTOR COMPANY
