Tailgate Release Switch: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the tailgate release handle. Refer to: Tailgate Release Handle .
  2. NOTE: This step is only necessary when installing a new component.

    Remove the tailgate release switch.

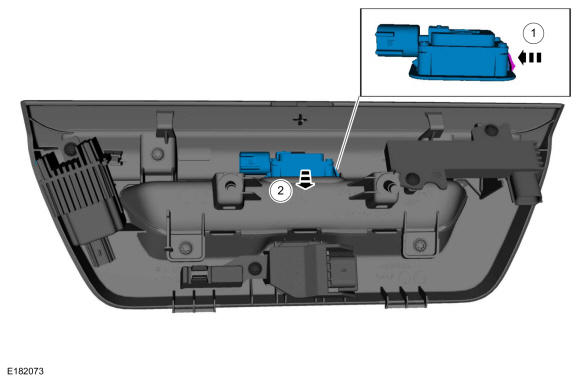

    1. Release the tailgate release switch retaining tab.
    2. Remove the tailgate release switch from the tailgate release handle.

GFD466942Courtesy of FORD MOTOR COMPANY
