Tailgate Release Handle: Removal

All vehicles

1. Open the tailgate.

   Courtesy of FORD MOTOR COMPANY

   Vehicles with tailgate step

2. Push the tailgate step release button.

   Courtesy of FORD MOTOR COMPANY

3. Open the tailgate step.

   Courtesy of FORD MOTOR COMPANY

   All vehicles

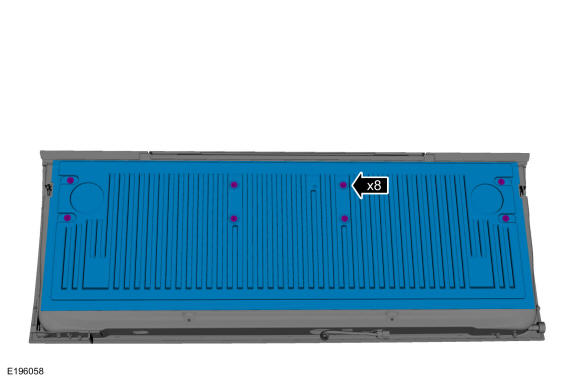

4. If equipped, remove the bedliner tailgate cover.

   Torque: 28 lb.in (3.2 Nm)

   Courtesy of FORD MOTOR COMPANY

5. Remove the tailgate access cover.

   Torque: 28 lb.in (3.2 Nm)

   Courtesy of FORD MOTOR COMPANY

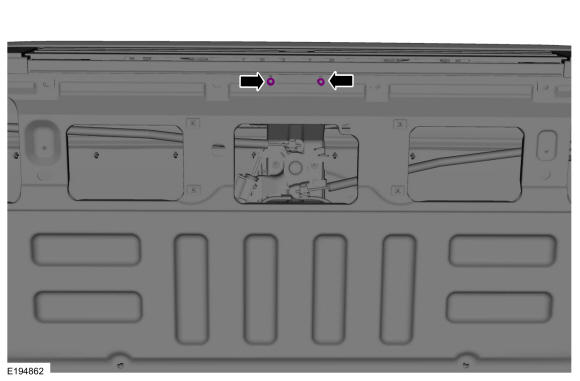

6. Remove the tailgate handle nuts.

   Torque: 62 lb.in (7 Nm)

   Courtesy of FORD MOTOR COMPANY

   Vehicles with mechanical tailgate handle

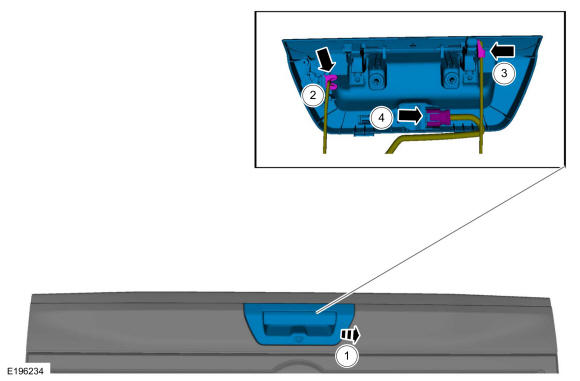

7. Remove the tailgate release handle.
   1. Position the tailgate release handle from the tailgate.
   2. If equipped, disconnect the tailgate lock cylinder rod.
   3. Disconnect the tailgate handle to tailgate control assembly rod.
   4. If equipped, disconnect the rear camera electrical connector.

   Courtesy of FORD MOTOR COMPANY

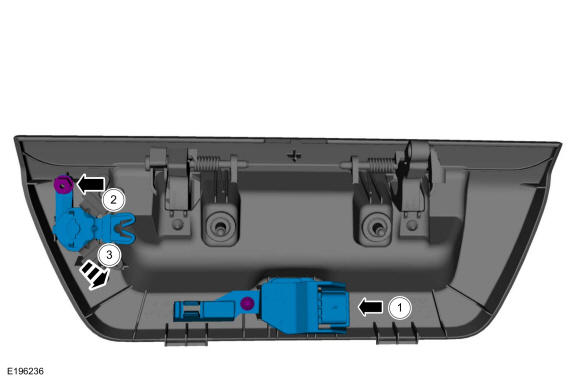

8. NOTE: This step is only necessary when installing a new component.

   Transfer components as necessary.

   1. If equipped, remove the rear camera and bracket.
   2. Remove the tailgate lock cylinder nut.

      Torque: 28 lb.in (3.2 Nm)

   3. Remove the tailgate lock cylinder.

   Courtesy of FORD MOTOR COMPANY

   Vehicles without mechanical tailgate handle

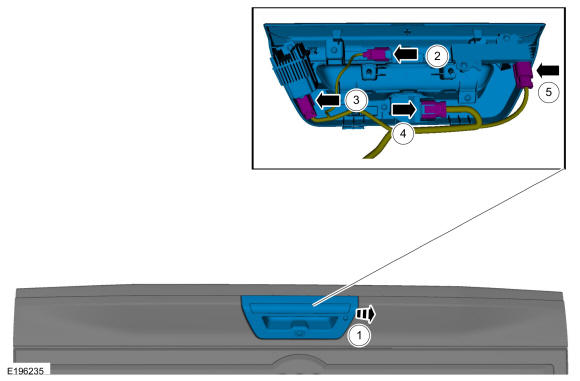

9. Remove the tailgate release handle.
   1. Position the tailgate release handle from the tailgate.
   2. Disconnect the tailgate release switch electrical connector.
   3. If equipped, disconnect the tailgate light electrical connector.
   4. If equipped, disconnect the rear camera electrical connector.
   5. If equipped, disconnect the keyless entry rear antenna electrical connector.

   Courtesy of FORD MOTOR COMPANY

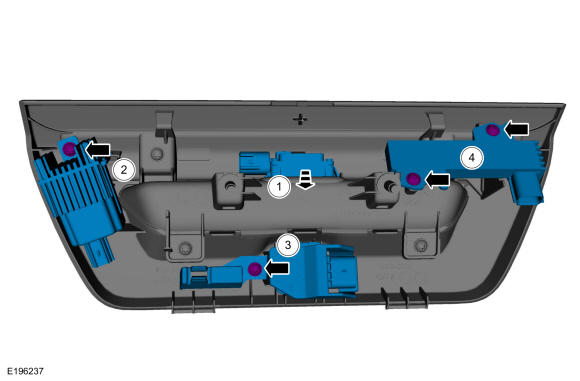

10. NOTE: This step is only necessary when installing a new component.

    Transfer components as necessary.

    1. Remove the tailgate release switch.
    2. If equipped, remove the tailgate light.
    3. If equipped, remove the rear camera and bracket.
    4. If equipped, remove the keyless entry rear antenna.

Courtesy of FORD MOTOR COMPANY
