Rear Door Latch - SuperCrew: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: LH side shown, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the exterior rear door handle. Refer to: Exterior Rear Door Handle - SuperCrew .
Vehicles with power windows
Remove the rear door window control switch Refer to: Rear Door Window Control Switch - SuperCrew, Vehicles With: Rear Power Windows .

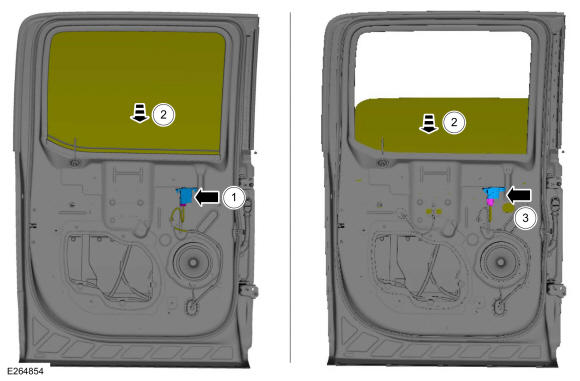

Lower the rear door window glass to the half down position.
1. Install the rear door window control switch.
2. Lower the rear door window glass to the half down position.
3. Remove the rear door window control switch.
Courtesy of FORD MOTOR COMPANY

Vehicles with manual windows
Lower the rear door window glass to the half down position.
1. Partially install the rear door window regulator handle.
2. Lower the rear door window glass to the half down position.
3. Remove the rear door window regulator handle.
Courtesy of FORD MOTOR COMPANY

All vehicles

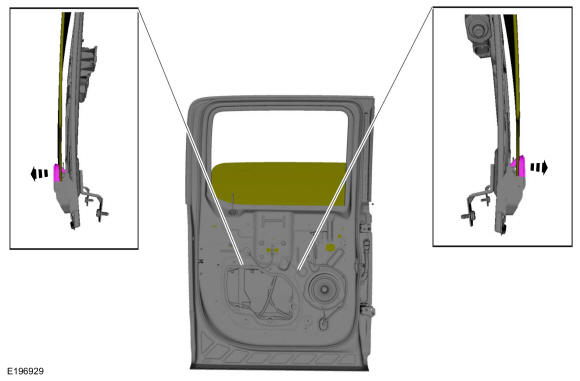

Release the retaining clips from rear door window glass. Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY
Raise the rear door window glass and tape in place.
1. Raise the rear door window glass
2. Tape the rear door window glass in place.
Courtesy of FORD MOTOR COMPANY
Position the rear door window regulator aside.
1. Remove the window regulator nuts.
  Torque: 93 lb.in (10.5 Nm)
2. Position the rear door window regulator aside.
Courtesy of FORD MOTOR COMPANY
Remove the rear door latch bolts.
Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The rear door window glass shown in the full up position for clarity.

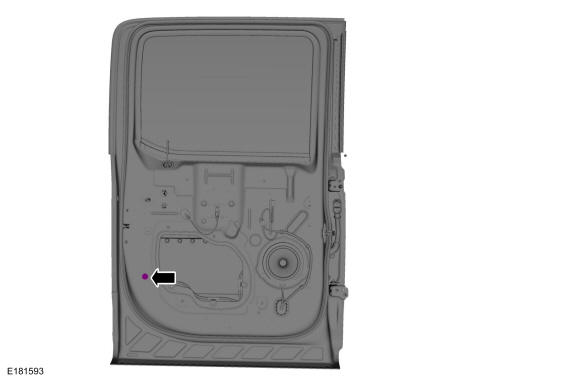

Remove the rear door window run bolt.

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: The rear door window glass shown in the full up position for clarity.

NOTE: The rear door is shown transparent for clarity.

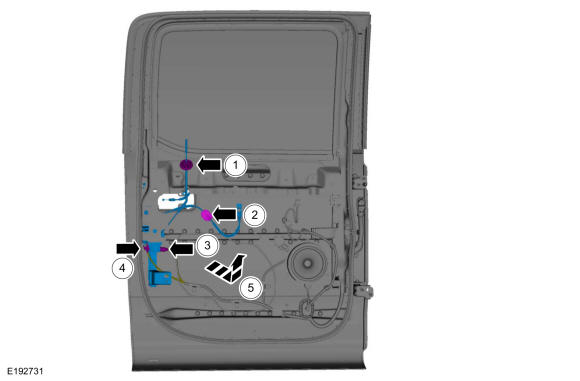

Remove the rear door latch.
1. Route the cable through the inner door.
2. If equipped, disconnect the power door lock actuator electrical connector.
3. Route the lock rod through the inner door.
4. Disconnect the door ajar switch electrical connector.
5. Remove the rear door latch.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

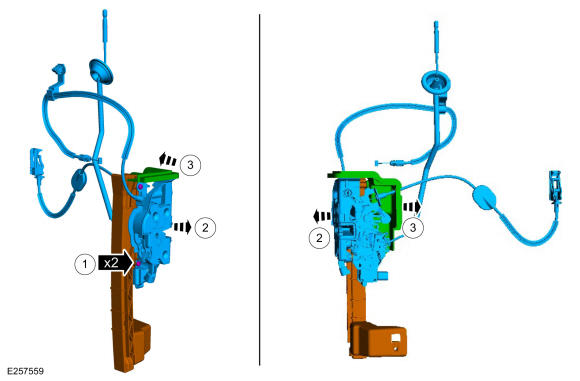

Remove the rear door latch from the aft rear door glass run and bracket.
1. Remove the screws from the rear door latch.
2. Remove the rear door latch from the aft rear door glass run and bracket.
3. If equipped. Remove the rear door latch rain shield from the aft rear door glass run and bracket.
Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new component.

Remove the cables and lock rod.
1. Remove the lock rod from the latch.
2. Detach the interior door handle cable from the retaining bracket.
3. Remove the interior door handle cable from the latch.
4. Detach the exterior door handle cable from the retaining bracket.
5. Remove the exterior door handle cable from the latch.

Courtesy of FORD MOTOR COMPANY
