Ignition Lock Cylinder: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Non-functional lock cylinder
NOTE:
For non-functional ignition lock cylinders, replace the steering column.
- Remove the steering column. Refer to: STEERING COLUMN
.
Functional lock cylinder
NOTE: Repair individual lock cylinders by discarding the inoperative lock cylinder and building a new lock cylinder using the appropriate lock repair service kit. The lock repair service kit includes a detailed instruction sheet to build the new lock to match the key cut pattern for the vehicle, thus allowing for single point replacement without needing to replace or reprogram other locks or keys. - Remove the steering column shrouds. Refer to: Steering Column Shrouds .

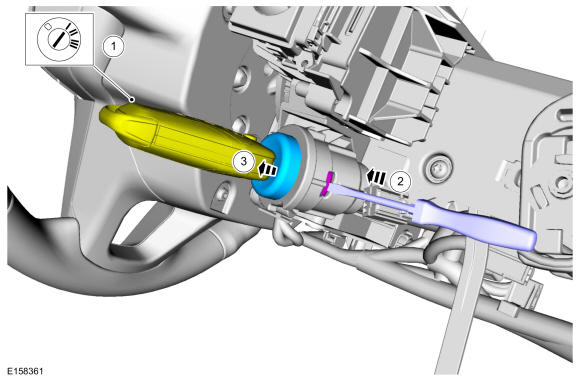

- Remove the ignition lock cylinder.
- Insert the ignition key and position the ignition lock cylinder to the ACC position.
- Using a suitable tool, press the ignition lock cylinder release pin through the access hole.
- Pulling the ignition lock cylinder outward, remove the ignition lock cylinder.
