Hood Latch Release Cable: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood latch. Refer to: Hood Latch .
  2. Remove the left headlamp assembly. Refer to: Headlamp Assembly .
  3. Remove the hood latch release handle. Refer to: Hood Latch Release Handle .

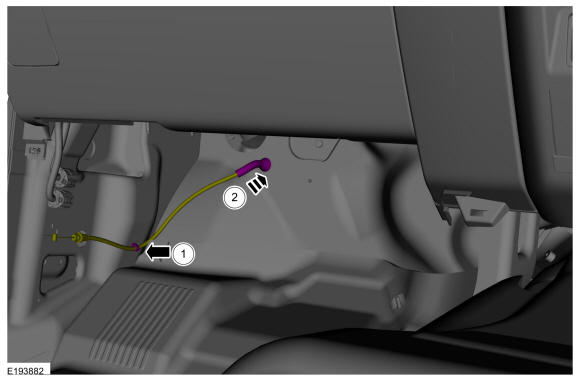

  4. Route the hood latch release cable through the cowl.

    1. Release the cable routing clip.
    2. Route the hood latch release cable through the cowl.

    GFD466898Courtesy of FORD MOTOR COMPANY

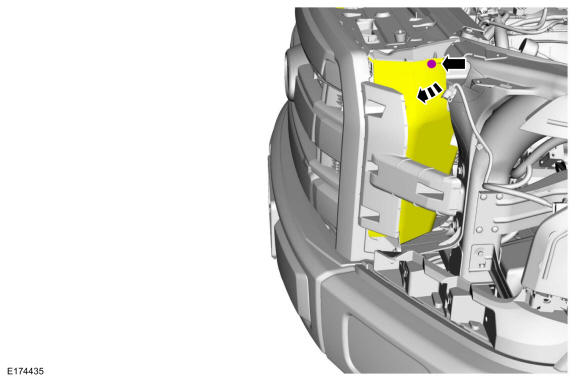

  5. Remove the clip from the core support and position aside the air deflector.
    GFD466899Courtesy of FORD MOTOR COMPANY

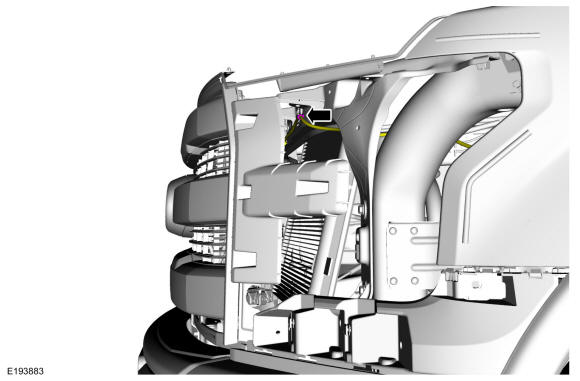

  6. Detach the cable routing clip from the core support.
    GFD466900Courtesy of FORD MOTOR COMPANY
  7. Remove the hood latch release cable.
GFD466901Courtesy of FORD MOTOR COMPANY
