Auxiliary Switches: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the overhead console. Refer to: Overhead Console .

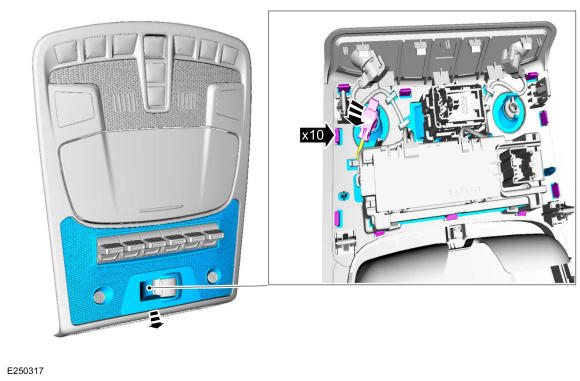

  2. Release the tabs and remove the trim panel.
    GFD466092Courtesy of FORD MOTOR COMPANY

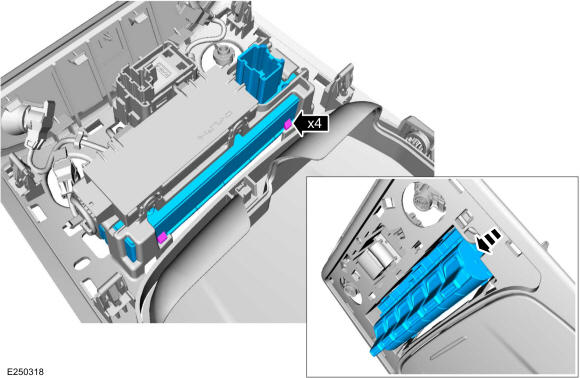

  3. Release the tabs and remove the auxiliary switch panel.
GFD466093Courtesy of FORD MOTOR COMPANY
