Section 324 (Tire Pressure Monitoring System (TPMS))
>>
Description And Operation
>>

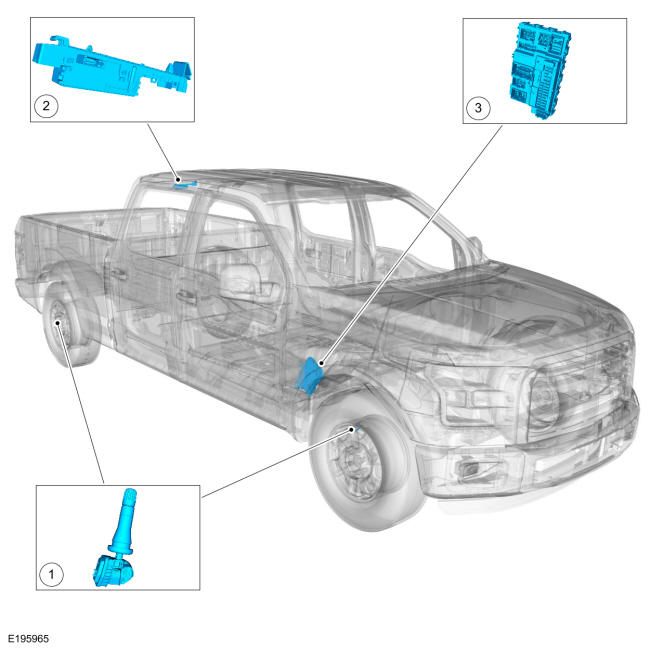

Tire Pressure Monitoring System (TPMS) - Component Location
Tire Pressure Monitoring System (TPMS) - Component Location
WARNING:
This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
Item
Description
1
TPMS sensor assembly (4 required)
2
RTM
3
BCM
