Fuel Tank: Removal

WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Release the fuel system pressure. Refer to: Fuel System Pressure Release .
If equipped, remove the nuts and the skid plate.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the rear drive shaft. Refer to: Rear Driveshaft .

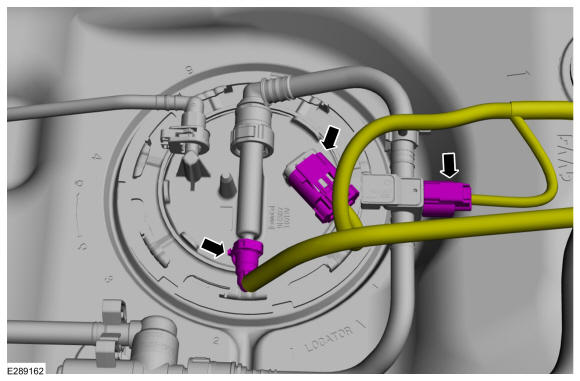

Disconnect the fuel feed and vapor tube quick release couplings. Refer to QUICK RELEASE COUPLING

Courtesy of FORD MOTOR COMPANY
- Disconnect the fuel tank filler pipe vent tube quick release coupling. Refer to QUICK RELEASE COUPLING
- Disconnect the electrical connectors and release the harness retainer clip.
Courtesy of FORD MOTOR COMPANY
Remove the clamp and position aside the fuel filler pipe.

Courtesy of FORD MOTOR COMPANY
Using a powertrain lift, support the fuel tank. Use Special Service Tool: 300-OTC1585AE Powertrain Lift.
- Remove the bolts.
  Torque: 35 lb.ft (47 Nm)
- Position aside the fuel tanks straps and remove the fuel tank.
Courtesy of FORD MOTOR COMPANY
If the fuel tank is being replaced, remove the fuel pump and sender unit and drain the fuel tank using the fuel tanker. Refer to: Fuel Pump and Sender Unit . Use Special Service Tool: 292-00004 Fuel Tanker 100 GPM.
