Fuel Lines: Removal
WARNING: This page is about a different car, the 2020 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- Release the fuel system pressure. Refer to: Fuel System Pressure Release .
- Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

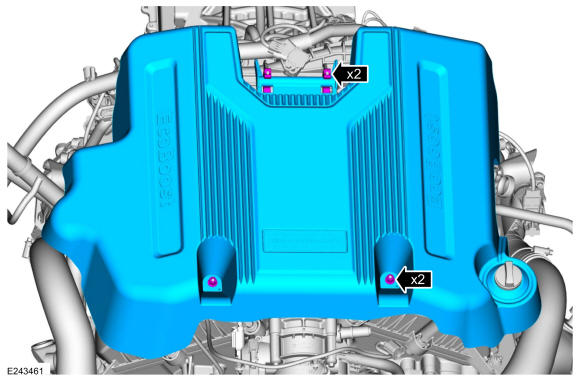

- Remove the engine appearance cover retainers, release the engine appearance cover from the rear retainers and then remove the engine appearance cover.
Torque: 97 lb.in (11 Nm)
-
- If equipped, remove the bolts.
- Release the retainer and remove the transmission housing cover.
- Separate fuel supply line from the bracket on the upper transmission bell housing.
- Release the retainer clip on the rear of the transmission and position aside the fuel supply line.
-
- Disconnect the front fuel supply line-to-fuel tank fuel supply line quick connect coupling. Refer to Quick Release Coupling
- Release the retainer clips.
- Remove the fuel feed line from the bottom of the vehicle.
